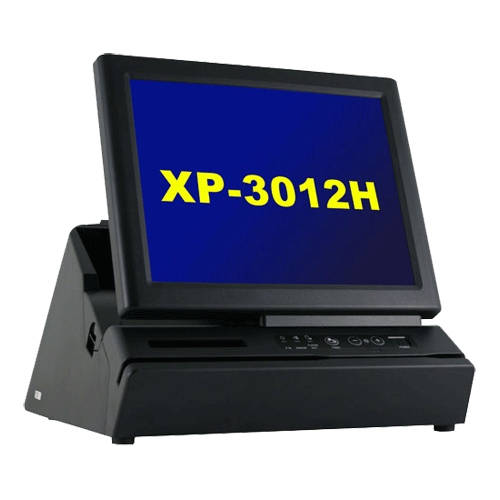

POSIFLEX XP-3012 All in one Fan free 12" POS Terminal ***Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

The XP-3000E series offers touch screen, printer and MSR in a tightly integrated package to bring retailers space-and-cost saving benefits. The XP-3012 comes with the Intel Pine View Single Core 1.66 Ghz CPU

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • All in one POS Touch System
  • Fan Free Design
  • Resistive touch screen : 12” LCD 1024 x 768 resolution
  • Intel Pine View Single Core 1.66 GHz CPU and DDR2 memory
  • All-in-one integrated system with touch screen, thermal printer and MSR (Optional) for space saving
  • 3” thermal printer with auto cutter
  • Fan-free design boasting quiet and anti-dust features
  • Aluminium die casting design for efficient cooling
  • Thermal printer with “one-button cutter blade retract” design to clear paper jam easily
  • Special “drop-load” design for easy printer paper roll loading
  • UPS (Embedded on main board developed by Posiflex) support to avoid sudden power loss (Battery Optional)
  • User-friendly mechanism for system upgrade and easy maintenance
  • High quality, rock solid design with easy maintenance in mind
NameSizeDownload
Brochure229kb xp3000_brochure.pdf
User Manual3,826kb xp3000_um.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel Pine View D425 Single Core 1.66 Ghz / 512K Cache CPU
Memory
DDR2 667 MHz, SO-DIMM socket x 1, max 2 GB, default 1 GB
Storage device(s)
Standard with 160GB HDD
Display
12" Active Matrix LCD Display
Resolution
1024 x 768
Tilt Angle
14 ~ 55°
Touch Panel
5-wire Resistive, USB Interface
Interfaces
3 x RS-232 interfaces; DB9 x2, RJ-45x1 with 5V or 12V support on COM2/COM3
4 x USB Ports
1 x VGA Port for 2nd Display with 12V power for Posiflex Monitor
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x 10/100/1000 Ethernet Port
Printer
80 mm Thermal Printer, 60 mm/sec, with Auto Cutter
Audio
Buzzer Only
Power Supply
External Power Adapter 12V, 80W
Operating Environment
0 °C ~ 40 °C, 20% ~ 90% Relative Humidity
External Dimensions (WxDxH)
325mm x 386.2mm x 298.1mm
Weight
6.24 Kg
