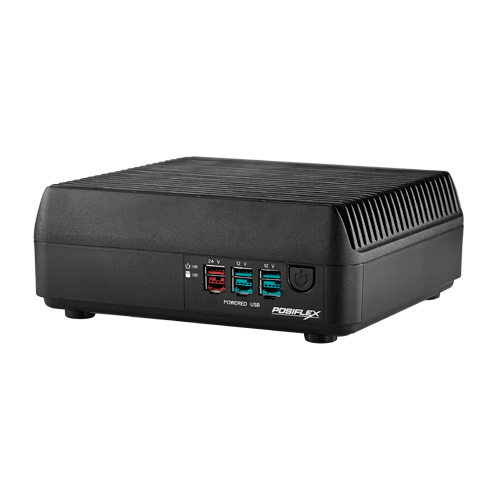

POSIFLEX TX-5300R Fanless POS PC i5 8G 128G SSD W10 IoT 21

(Product may vary from image. Rely only on description for purchasing decisions.)
  • PFTX5305R-80128S21
  • TX5300E1362234
  • POSIFLEX
  • TX5300R
  • Login to view pricing and availability

POS box with Intel Coffee Lake core i5-8500T up to 3.5GHz(9M Cache), 8GB DDR4, 128GB SSD,4S, 4xUSB3.0, 2 x 12V USB, 1 x 24V USB, 1 parallel, 1 x VGA, 1 x HDMI, 1 x CR, 1 x M.2 slot, 1xLAN, 1x line out/mic in, 1x Spk, WIN10IoT 64 Bit 2021 Preloaded

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • High Performance 8th generation Intel Coffee Lake i3 CPU (optional up to Core i5)
  • Retail Ready with powered USB Ports 2 x 12V & 1 x 24V
  • Standard with SATA 128G SSD (other options available)
  • 4 GB DDR4 RAM expandable to 32GB (2 Slots)
  • Fanfree Design
  • Small footprint
  • Aluminium die-cast housing for efficient cooling
  • Powered Serial ports
  • VGA
  • M.2 Expansion slot
  • Optional Touch monitors, Pole displays available
NameSizeDownload
Brochure2,762kb tx5300_5300e_tx5500_5500e_brochure.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
TX5000TX 5000 Posbox Series

Parts documents

Parts layout details

Specifications
CPU
Intel Core i3-8100T/2.4GHz up to 3.1GHz/6M Cache
Other options:
Intel Core i5-8500T/2.1GHz up to 3.5 GHz/9M Cache
Memory
DDR4 SO-DIMM socket x 2, max 32GB, default 4 GB
Storage device(s)
In Australia Standard with 128 GB SSD,
can also be purchased with a 500 GB SATA HDD (Special Order) or other size SSD Drives
I/O Ports
6 x RS-232 Ports (4 x DB9 standard, optional COM5/COM6 with cable from Service window) with 5V/12V Support
1 x Parallel port
4 x USB 3.0
3 x Powerd USB Ports 2 x 12V & 1 x 24V
1 x 10/100/1000Mb Ethernet Port
1 x VGA Port (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x M.2 Slot
Audio
Internal 2W Speaker
1 x Mic-in
1 x Line Out
OS Support
WIN10 IoT 64 bit / Linux per request
Environmental Sealing
N/A
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (150W)
External Dimensions (WxDxH)
220mm x 202mm x 83mm
Weight
2.75 Kg
