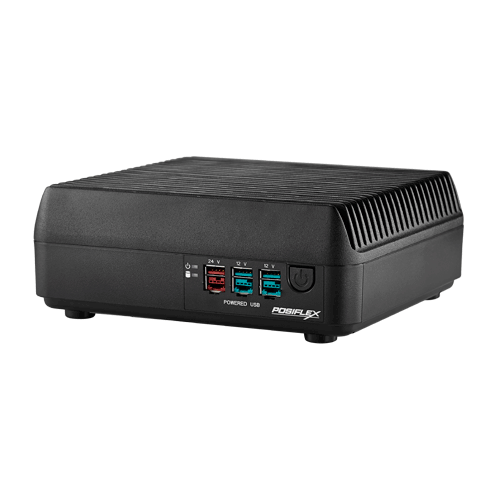

POSIFLEX TX-5000 Retail Fan-less POS Terminal ***Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

TX-5000R Series is the latest high-end fanless POS Box. Retail ready, Incorporating leading CPU technology - 4th generation Intel® Haswell processor and Powered USB Ports, TX-5000 Series provides unmatched performance while juggling multiple programs with ease.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • High Performance 4th generation Intel Haswell i5 CPU (optional up to Core i7)
  • Retail Ready with powered USB Ports
  • Standard with 128G SSD (other options available)
  • 4 GB DDR3 RAM expandable to 16GB
  • Fanfree Design
  • Small footprint
  • Aluminium die-cast housing for efficient cooling
  • Powered Serial ports
  • VGA and DP Port
  • Mini PCIe slot
  • Optional Touch monitors, Pole displays available
NameSizeDownload
Brochure241kb tx5000_5000e_brochure.pdf
User Manual538kb TX-5000_TX-5000E_ume.pdf

Products available to purchase

 SKUVendorName
PFPP9000URB POSIFLEXAURA 9000 USB & RS232 interface Thermal Printer
PFLM3115BF POSIFLEX15" Bezelfree LCD Monitor on Gen7 Base Black
PFTM3115CB-U POSIFLEX15" LCD PCAP Touch Monitor Black USB
PFCR4100B POSIFLEXCR-4100 Cash Drawer Black
CAB-PFDP-VGA POSIFLEXConverter Cable Display Port to VGA
AD-PF12VR150W4P POSIFLEXPower Adaptor 12V 150W for Posiflex Systems

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
PB4600POSIFLEX PB-4600/4600E POS Box Terminal

Parts documents

Parts layout details

Specifications
CPU
Intel Core i5-4570TE/2.7GHz up to 3.3GHz/4M Cache (Standard in Aust)
Other options:
Intel Core i3-4330TE/2.4GHz/4M Cache
Intel Core i7-4770TE/2.3GHz up to 3.3GHz/8M Cache
Memory
DDR3 1333/1600 MHz, SO-DIMM socket x 2, max 16 GB, default 4 GB
Storage device(s)
In Australia Standard with 128 GB SSD,
can also be purchased with a 500 GB SATA HDD (Special Order) or other size SSD Drives
I/O Ports
6 x RS-232 Ports (4 x DB9 standard, optional COM5/COM6 with cable from Service window) with 5V/12V Support
1 x Parallel port
5 x USB Ports 2 x USB 3.0/2.0 & 3 x USB 2.0
3 x Powerd USB Ports 2 x 12V & 1 x 24V
1 x 10/100/1000Mb Ethernet Port
1 x VGA Port (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x DP Port
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x Mini-PCIe Slot
Audio
Internal 2W Speaker (optional)
1 x Mic-in
1 x Line Out
OS Support
Windows 7 / POSReady 7 / Windows Embedded 8.1 Industry / Linux per request
Environmental Sealing
N/A
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (150W)
External Dimensions (WxDxH)
220mm x 202mm x 83mm
Weight
2.75 Kg
