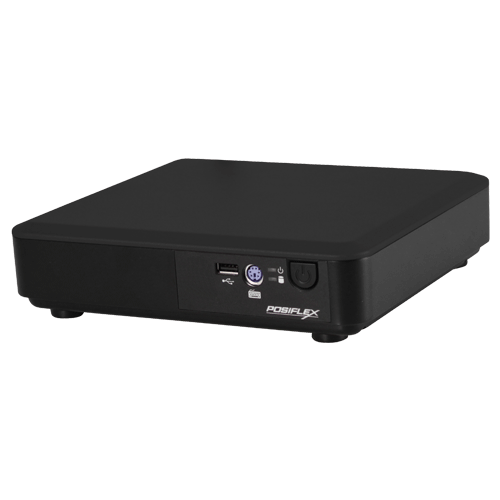

POSIFLEX TX-2300 G2 Fanless POS Box

(Product may vary from image. Rely only on description for purchasing decisions.)

The TX-2300 G2 Series is a multi-purpose control box with an upgraded Intel Elkhart Lake J6412 CPU. It offers a vast range of I/O connectivity options including HDMI ports x 2 to connect POS peripherals, and can be used as a full fledge POS Box, a Kitchen Display System (KDS), a digital signage controller or any industrialized applications.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Fanless PC POS System
  • Intel Elkhart Lake J6412 Quad Core CPU
  • 128 GB M.2 SSD or Larger
  • 8 GB DDR4 RAM expandable to 32GB
  • Aluminium die-cast housing for efficient cooling
  • 2 x HDMI Ports & 1 VGA Port
  • M.2 Expansion slot
  • Optional Touch monitors, Pole displays available
NameSizeDownload
Brochure595kb tx2300g2_2300Rg2_Brochure.pdf

Products available to purchase

 SKUVendorName
PFTX2300G-80128S21 POSIFLEXTX-2300 POSBox J6412 8GB 128 G SSD Win10IoT LTSC

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Elkhart Lake J6412, Quad core, up to 2.0GHz ~ 2.6 GHz(1.5M cache)
Memory
DDR4 SO-DIMM x 1, max. 32GB, default 8 GB
Storage device(s)
In Australia Standard with 128 GB SSD, can also be purchased with larger SSD Drives
M.2 connector [supporting AHCI mode]
I/O Ports
4 x RS-232 Ports (2 x DB9, 2 x 10 pin RJ45) with 5V/12V Support
6 x USB Ports, 2 x USB3.0 & 4 x USB2.0
1 x 10/100/1000Mb Ethernet Port
1 x VGA Port (D-Sub with 12V Power for Posiflex LCD Monitors)
2 x HDMI Port
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x Mic-in/Line-out Audio
1 x Expansion M.2 slot
1 x Parallel port via optional cable from service window
Audio
2W Speaker
OS Support
Windows 10 IoT
Environmental Sealing
N/A
Operating Environment
0 ~ +40 °C, 20 ~ 90% RH
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (60W)
External Dimensions (WxDxH)
220mm x 202mm x 56mm
Weight
1.2 Kg
