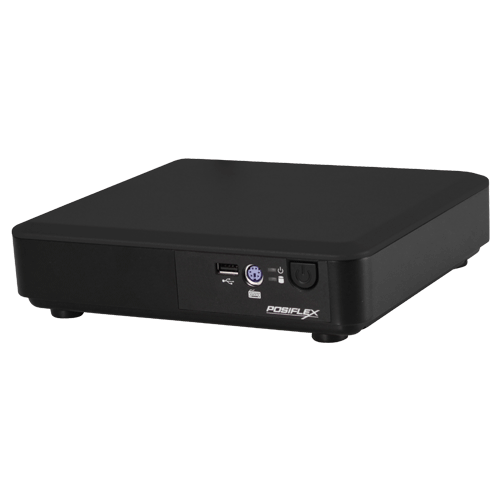

POSIFLEX TX-2100 POSBox J1900 8GB 128 G SSD Win10IoT

(Product may vary from image. Rely only on description for purchasing decisions.)
  • PFTX2100-80128SD
  • TX210000862422
  • POSIFLEX
  • TX2100
  • Login to view pricing and availability

TX-2100 POS box Intel Bay Trail Quad Core J1900, 2GHz up to 2.42GHz, 2M Cache, 4GB DDRL3 upgradable to 8GB, 128GB SSD,4S,6USB, PS/2, LAN, 2xVGA, 1xCR, 1xUPS, 60W Power upgrade, WIN IoT LTSB enterprise

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Fanless PC POS System
  • Intel Bay Trail Quad Core J1900 CPU
  • 128 GB SSD or larger (optional HDD)
  • 8 GB DDR3L RAM (standard in Aust)
  • Aluminium die-cast housing for efficient cooling
  • Powered Serial ports
  • 2 x VGA Ports
  • M.2 Expansion slot
  • Optional Touch monitors, Pole displays available
NameSizeDownload
Brochure346kb tx-2000_2100_brochure.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel Bay Trail J1900 Quad Core CPU, up to 2.42GHz, 2M Cache
Memory
DDR3L SO-DIMM x 1, max. 8GB
Storage device(s)
In Australia Standard with 128 GB SSD, can be ordered with larger SSD Drive
I/O Ports
4 x RS-232 Ports (2 x DB9, 2 x 10 pin RJ45) with 5V/12V Support
6 x Standard USB2.0 Ports
1 x Parallel Port
1 x 10/100/1000Mb Ethernet Port
2 x VGA Ports (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x PS2 Port
Audio
Line out
OS Support
Windows 7/POSReady 7/Windows Embedded 8.1 Industry/Windows 10 IoT/Linux per request
Environmental Sealing
N/A
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (40W)
External Dimensions (WxDxH)
220mm x 202mm x 56mm
Weight
1.12 Kg
