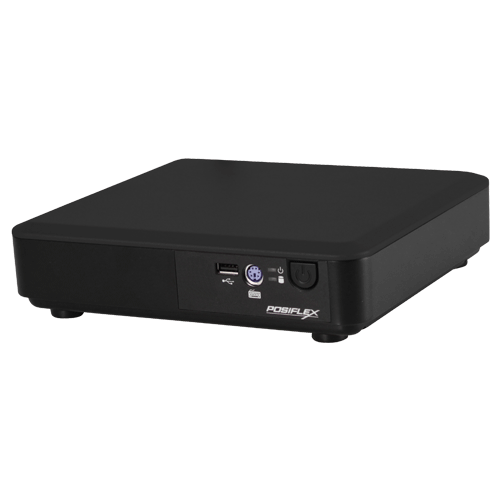

POSIFLEX TX-2100 Fan less POS Terminal

(Product may vary from image. Rely only on description for purchasing decisions.)

The TX-2100 is a no-frills fanless POS Box with all the essential functions and capabilities to satisfy businesses of all sizes, and represent one of the best value choices in the entry-level POS Box segment.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Fanless PC POS System
  • Intel Bay Trail Quad Core J1900 CPU
  • 128 GB SSD or larger (optional HDD)
  • 8 GB DDR3L RAM (standard in Aust)
  • Aluminium die-cast housing for efficient cooling
  • Powered Serial ports
  • 2 x VGA Ports
  • M.2 Expansion slot
  • Optional Touch monitors, Pole displays available
NameSizeDownload
Brochure346kb tx-2000_2100_brochure.pdf

Products available to purchase

 SKUVendorName
PFTX2100-80128S21 POSIFLEXTX-2100 POSBox J1900 8GB 128 G SSD Win10IoT 21

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
PB3200POSIFLEX PB-3200 POS Box Terminal

Parts documents

Parts layout details

Specifications
CPU
Intel Bay Trail J1900 Quad Core CPU, up to 2.42GHz, 2M Cache
Memory
DDR3L SO-DIMM x 1, max. 8GB
Storage device(s)
In Australia Standard with 128 GB SSD, can be ordered with larger SSD Drive
I/O Ports
4 x RS-232 Ports (2 x DB9, 2 x 10 pin RJ45) with 5V/12V Support
6 x Standard USB2.0 Ports
1 x Parallel Port
1 x 10/100/1000Mb Ethernet Port
2 x VGA Ports (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x PS2 Port
Audio
Line out
OS Support
Windows 7/POSReady 7/Windows Embedded 8.1 Industry/Windows 10 IoT/Linux per request
Environmental Sealing
N/A
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (40W)
External Dimensions (WxDxH)
220mm x 202mm x 56mm
Weight
1.12 Kg
