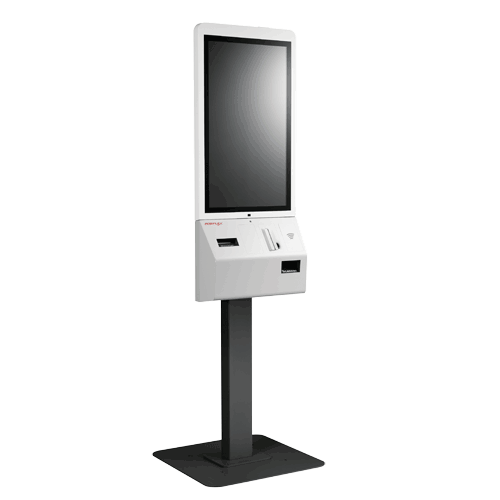

POSIFLEX TK-3250 Kiosk i3 8G 128G S Wifi MSRWIN10IoT Single

(Product may vary from image. Rely only on description for purchasing decisions.)
  • PFTK3253SW-80128SMCE
  • TK325B767322011036
  • TK3250
  • Login to view pricing and availability

Paragon 32" kiosk for Single sided operation, with 3" receipt printer, Camera, Proximity Sensor & Status Indicator. (optional Custom credit card payment terminal support), Intel Kaby Lake -7100U Core i3, 8G DDR4, 128 GB SSD, Wifi/BT, 2D Scanner, MSR, WIN10IoT LTSC Value

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Pole or wall mounted slimline Kiosk
  • Also available in Dual Pole Mounting
  • Standard with 3" Printer, Camera, Proximity Sensor and Status Indicator
  • Intel® Kaby Lake -7100U Core i3, 2.4Ghz, 3M cache
  • Easy Maintenance - all accesable from the front
  • Many options available:
  • Scanner, MSR, Fingerprint reader, Wide angle Camera, proximity sensor
Brochure7,549kb tk3200_brochure.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

No Products to Display

Parts documents

Parts layout details

Intel® Kaby Lake -7100U Core i3, 2.4Ghz, 3M cache
DDR3L 800 MHz, SO-DIMM socket x 1, max 8 GB, default 4 GB
Storage device(s)
In Australia Standard with 128 GB SSD, can also be purchased with a 500 GB SATA HDD (Special Order) or larger SSD Drives
32" TFT LED Backlit LCD Display
1920 x 1080
Touch Panel
True-flat PCAP touch with multi-touch support
I/O Ports
6 x RS-232 Ports (1 x DB9, 5 x 10 pin RJ50) with 5V/12V Support
6 x USB Ports (1 x USB3.0/2.0 & 5 x USB2.0)
1 x 10/100/1000Mb Ethernet Port
1 x M.2 slot
Internal 3W speaker x 2
OS Support
Windows 7/POSReady 7/Windows Embedded 8.1 Industry/Windows 10 IoT/Linux per request
Standard Pedestal or Countertop
Wifi/BT Module
2D Barcode Scanner
Custom Brackets for Payment terminals
Fingerprint reader
NFC Reader
Environmental Sealing
Operating Environment
0 ~ +40 °C, 20 ~ 90% RH with SSD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V/84W x 1 + 24V/60W x 1
External Dimensions (WxDxH)
495mm x 602mm x 1859mm (With Pole/base plate)
495mm x 184mm x 1189mm (with wall mount bracket)
61.5 Kg (with pole)
32.5 Kg (with wall mount bracket)
