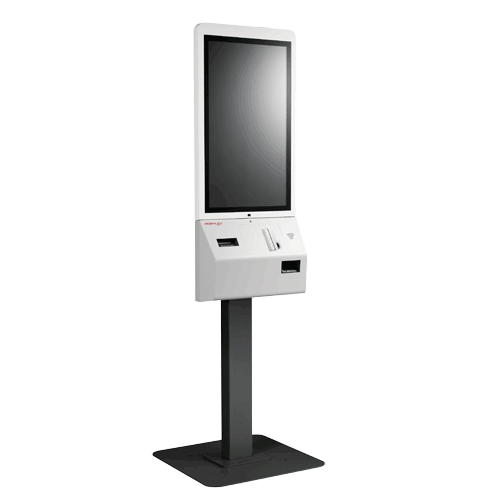

POSIFLEX TK-3230 Paragon 32" Kiosk (J1900) System Series

(Product may vary from image. Rely only on description for purchasing decisions.)

Paragon TK-3200 Series.Packed with functionality and convenience in an appealing design, the Paragon TK-3200 Series is a 32" interactive kiosk that is suited for retail stores, quick service, and fast casual restaurants. It serves as a seamless extension of the existing POS terminals, helping store owners to drive sales during peak times, and offers various ways for consumers to order, pay and engage with brands.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Pole or wall mounted slimline Kiosk
  • Also available in Dual Pole Mounting
  • Standard with 3" Printer, Camera, Proximity Sensor and Status Indicator
  • Intel® Bay Trail J1900 Quad Core CPU, up to 2.42 GHz, 2M Cache
  • Easy Maintenance - all accesable from the front
  • Many options available:
  • Scanner, MSR, Fingerprint reader, Wide angle Camera, proximity sensor
NameSizeDownload
Brochure7,549kb tk3200_brochure.pdf

Products available to purchase

 SKUVendorName
PFTK3230S-40128SE POSIFLEXTK-3230 Kiosk J1900 4G 128G SSD WIN10IoT LTSC Sgle
PFCD3601K-PA POSIFLEX2D Scanner module for the TK-32xx
PFSF2100W-U POSIFLEXMSR Attachment 3 Track for TK32xx Series White

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel® Bay Trail Quad Core Celeron™ J1900 / 2.0 GHz ~ 2.42 GHz
Memory
DDR3L 800 MHz, SO-DIMM socket x 1, max 8 GB, default 4 GB
Storage device(s)
In Australia Standard with 128 GB SSD, can also be purchased with a 500 GB SATA HDD (Special Order) or larger SSD Drives
Display
32" TFT LED Backlit LCD Display
Resolution
1920 x 1080
Touch Panel
True-flat PCAP touch with multi-touch support
I/O Ports
6 x RS-232 Ports (1 x DB9, 5 x 10 pin RJ50) with 5V/12V Support
6 x USB Ports (1 x USB3.0/2.0 & 5 x USB2.0)
1 x 10/100/1000Mb Ethernet Port
1 x M.2 slot
Audio
Internal 3W speaker x 2
OS Support
Windows 7/POSReady 7/Windows Embedded 8.1 Industry/Windows 10 IoT/Linux per request
Options
Standard Pedestal or Countertop
Wifi/BT Module
2D Barcode Scanner
Custom Brackets for Payment terminals
MSR
Fingerprint reader
NFC Reader
Environmental Sealing
N/A
Operating Environment
0 ~ +40 °C, 20 ~ 90% RH with SSD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V/84W x 1 + 24V/60W x 1
External Dimensions (WxDxH)
495mm x 602mm x 1859mm (With Pole/base plate)
495mm x 184mm x 1189mm (with wall mount bracket)
Weight
61.5 Kg (with pole)
32.5 Kg (with wall mount bracket)
