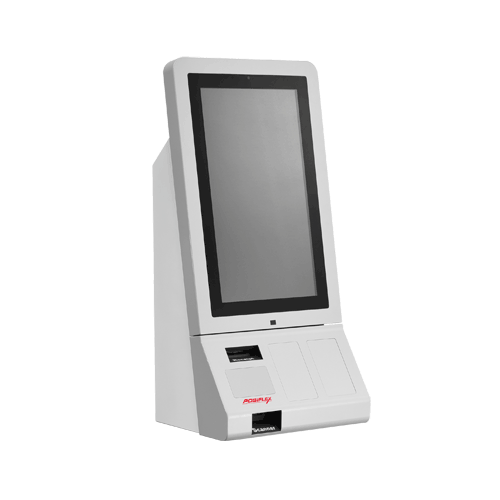

POSIFLEX TK-2130 Kiosk J1900 8G 128G SSD WIN10 no Base

(Product may vary from image. Rely only on description for purchasing decisions.)
  • PFTK2130-80128SD
  • TK2130 8G/128/WIN10
  • POSIFLEX
  • TK2130
  • Login to view pricing and availability

Stellar TK-2130 21.5" kiosk with 3" receipt printer. Intel Bay Trail, J1900 quad core, up to 2.42GHz (2M cache), PCAP Touch, 8G DDR3L, 128 GB SSD, no Pedestall, WIN10 IoT 64 bit preloaded

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Modular design Kiosk
  • Standard with 3" Printer
  • Intel Bay Trail J1900 Quad Core CPU, up to 2.42 GHz, 2M Cache
  • Stand alone or countertop mounting
  • Easy Maintenance - all accesable from the front
  • Many options available:
  • Scanner, MSR, Fingerprint reader, Wide angle Camera, proximity sensor
NameSizeDownload
No Downloads

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel® Bay Trail Quad Core Celeron™ J1900 / 2.0 GHz ~ 2.42 GHz
Memory
DDR3L 800 MHz, SO-DIMM socket x 1, max 8 GB, default 4 GB
Storage device(s)
In Australia Standard with 128 GB SSD, can also be purchased with a 500 GB SATA HDD (Special Order) or larger SSD Drives
Display
21.5" TFT LED Backlit LCD Display
Resolution
1920 x 1080
Touch Panel
True-flat PCAP touch with multi-touch support
I/O Ports
6 x RS-232 Ports (3 x DB9, 1 x 10 pin RJ50) with 5V/12V Support
6 x USB Ports (1 x USB3.0/2.0 6 x USB2.0)
1 x 10/100/1000Mb Ethernet Port
1 x M.2 slot
Audio
Internal 3W speaker x 2
OS Support
Windows 7/POSReady 7/Windows Embedded 8.1 Industry/Windows 10 IoT/Linux per request
Options
Standard Pedestal or Countertop
Wifi/BT Module
2D Barcode Scanner
Proximity Sensor
Wide Angle Camera
Custom Brackets for Payment terminals
MSR
Fingerprint reader
NFC Reader
With Expansion Pedestal option add:
Ticket Printer
Card dispenser
Environmental Sealing
N/A
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
External Dimensions (WxDxH)
400mm x 330mm x 1621mm (With Pedestal)
Weight
60 Kg
