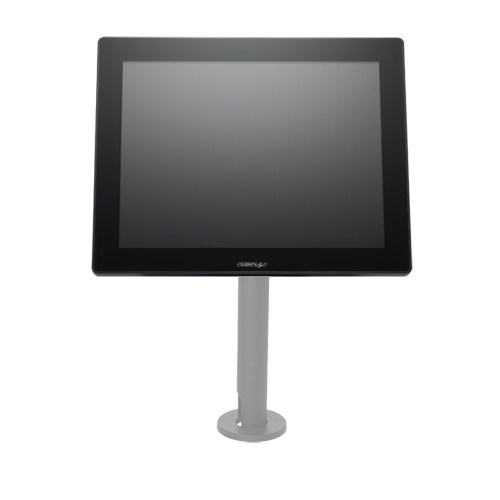

POSIFLEX RT6015 i3 Wh 8GB 256G 80W PS no Base W10 2021

(Product may vary from image. Rely only on description for purchasing decisions.)
  • PFRT60153N8-80256S21
  • PFRT60153N8-80256S21
  • POSIFLEX
  • RT6015
    • Login to view pricing and availability

RT-601515" Super slim fanfree bezelfree PCAP touch terminal, Intel Whiskey Lake Core i3-8145UE, up to 3.9Ghz, 4M cache, 8GB DDR4, 256GB SSD, 3 x serial, 2 x USB3.0, 3 x USB2.0, 1 x LAN, 1 x VGA (pin Header), 1 x Mini DP, 1 x CR, 1 x Spk, 1 x M.2, 80W Power Supply upgrade, WIN 10 IoT 2021 64 Bit PreLoaded, no Base

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Slimline 15" Fanless Touch POS Terminal
  • Projective Capacitive Touch screen (PCAP)
  • 15" LCD 1024 x 768 resolution
  • Standard Intel Whiskey Lake Core i3-8145UE Dual Core CPU, up to 3.90 GHz, 4M Cache
  • Factory Option upgrade Intel Whiskey Lake Core i5-8365UE Quad Core, up to 4.10 GHZ, 6M Cache
  • Standard 4G DDR4 memory, upgradable to max 32G
  • Fan-free design boasting quiet and anti-dust features
  • Clean Cable management
  • Aluminium die-cast main housing design for efficient cooling
  • Can be shipped with 10" LCD Customer display mounted
  • Optional USB or Powered USB expansion module in base
NameSizeDownload
Brochure1,478kb rt6015_6016_brochure.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Standard Intel Whiskey Lake Core i3-8145UE Dual Core CPU, up to 3.90 GHz, 4M Cache
Factory Option upgrade Intel Whiskey Lake Core i5-8365UE Quad Core, up to 4.10 GHZ, 6M Cache
Special Order: Intel Whiskey Lake Core i7-8565U (project only)
Memory
DDR4 SO-DIMM slot x 2, max. 32GB
Storage device(s)
In Australia Standard with 128 GB SSD, can also be purchased with a 500 GB SATA HDD (Special Order) or larger SSD Drives
2nd SATA Slot available
Display
15" TFT LED Backlit LCD Display
Resolution
1024 x 768
Tilt Angle
15° to 90°
Touch Panel
Bezel Free: Projected Capacitive Touch supporting 10pts multi-touch
I/O Ports
3 x RS-232 Ports (1 x DB9, 2 x 10 pin RJ50) with 5V/12V Support
5 x USB Ports (2 x USB3.0/2.0 3 x USB2.0)
Optional USB expansion module to bring total to 7 USB Ports (in base, uses 1 x USB3.0)
or Optional Powered USB expansion module 1x12V & 1 x 24V USB Ports (in base, uses 1 x USB3.0)
1 x 10/100/1000Mb Ethernet Port
1 x VGA Port via proprietory cable for 2nd Display (with 12V Power for Posiflex LCD Monitors)
1 x mini DP port
1 x M.2 slot
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable) Supporting 24V Cash Drawers
Audio
internal 1 x 2W Speaker
OS Support
WIN10 IoT 64 bit
Environmental Sealing
IP65 to front screen
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (60W)
(Optional 150W when equiped with Powered USB module)
External Dimensions (WxDxH)
368mm x 207mm x 325mm
Weight
5.4 Kg
