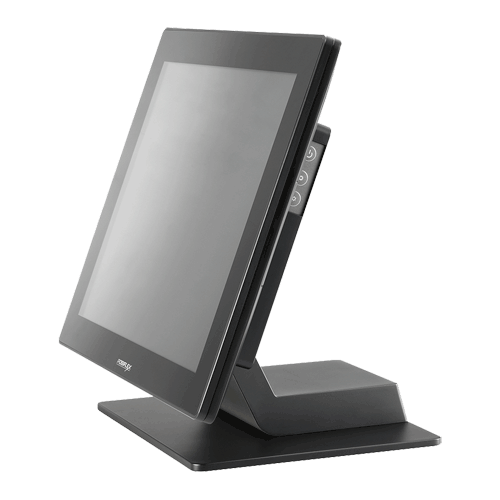

POSIFLEX RT-5015 Slimline Fan free POS 15" Touch Terminal Series ***Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

The RT-5015 is a fanless POS terminal refined in every detail which is more powerful and slimmer and can be used for more applications. It features an ultra-slim 15” touch screen and sleek body which makes the unit stylish and space-saving. The RT-5015 is taking POS terminal design into the next level and setting your brand image apart from the others.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Slimline 15" Fanless Touch POS Terminal
  • Projective Capacitive Touch screen (PCAP)
  • 15" LCD 1024 x 768 resolution
  • Intel Skylake Core i3-6100U Dual Core CPU, 2.30 GHz, 3M Cache and DDR4 memory
  • Fan-free design boasting quiet and anti-dust features
  • Clean Cable management
  • Aluminium die-cast main housing design for efficient cooling
  • Can be shipped with 10" LCD Customer display mounted
  • Optional USB or Powered USB expansion module in base
NameSizeDownload
Brochure368kb rt50152016_brochure.pdf

Products available to purchase

 SKUVendorName
PFLM4011DPCBF POSIFLEX10.1" Customer Display with DP interface & Cam for RT
PFTM4011DPCB POSIFLEX10.1" Customer Touch Display with DP interface for RT
PFRA10415B2D-U POSIFLEX2D Scanner side attachment for 15" RT
PFRA31115B3RF-U POSIFLEX3 track MSR attachment & RF Reader for 15" RT
PFRA30115B3FP2D-U POSIFLEX3 track MSR FP 2D Scn side attach for 15" RT
PFTM4010DPCCBF POSIFLEX9.7" 2nd Touch LCD (1024x768) with DP IF Cam for RT
PFLM4010BF POSIFLEX9.7" Bezelfree Customer LCD Monitor for RT-series
PFLM4010DPBF POSIFLEX9.7" BF Customer LCD (1024x768) with DP IF for RT
PFTM4010CB POSIFLEX9.7" LCD PCAP Touch Customer Display for RT-Series
PFPU490EXT POSIFLEXExternal Box with 1x24V & 3 x 12V Powered USB no PS
PFPD2610B-U POSIFLEXPD-2610B Rear Mount 2 x 20 VFD Display USB for RT
AD-PF12VR60W4P POSIFLEXPower Adaptor 12V 60W for Posiflex System
AD-PF12VR80W4P POSIFLEXPower Adaptor 12V 80W for Posiflex System
PFRA10115B3-U POSIFLEXSlim 3 track MSR side attachment for 15" RT
CAB-mDPVGA GOODSON20cm Mini DisplayPort Male to VGA Female Adapter

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel Skylake Core i3-6100U Dual Core CPU, 2.30 GHz, 3M Cache
Memory
DDR4 SO-DIMM slot x 2, max. 16GB
Storage device(s)
In Australia Standard with 64 GB SSD, can also be purchased with a 500 GB SATA HDD (Special Order) or larger SSD Drives
2nd SATA Slot available
Display
15" TFT LED Backlit LCD Display
Resolution
1024 x 768
Tilt Angle
15° to 90°
Touch Panel
Bezel Free: Projected Capacitive Touch supporting 10pts multi-touch
I/O Ports
3 x RS-232 Ports (1 x DB9, 2 x 10 pin RJ50) with 5V/12V Support
4 x USB Ports (2 x USB3.0/2.0 2 x USB2.0)
Optional USB expansion module to bring total to 7 USB Ports (in base, uses 1 x USB3.0)
or Optional PoweredUSB expansion module 1x12V & 1 x 24V USB Ports (in base, uses 1 x USB3.0)
1 x 10/100/1000Mb Ethernet Port
1 x VGA Port via proprietory cable for 2nd Display (with 12V Power for Posiflex LCD Monitors)
1 x mini DP port
1 x Mini-PCIe slot
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
Audio
internal 1 x 2W Speaker
OS Support
Windows 7 / POSReady 7 / WIN8.1 Embedded Retail Industry / WIN10 IoT 64 bit / Linux per request
Environmental Sealing
IP65 to front screen
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (80W)
(Optional 150W when equiped with Powered USB module)
External Dimensions (WxDxH)
368mm x 207mm x 325mm
Weight
5.4 Kg
