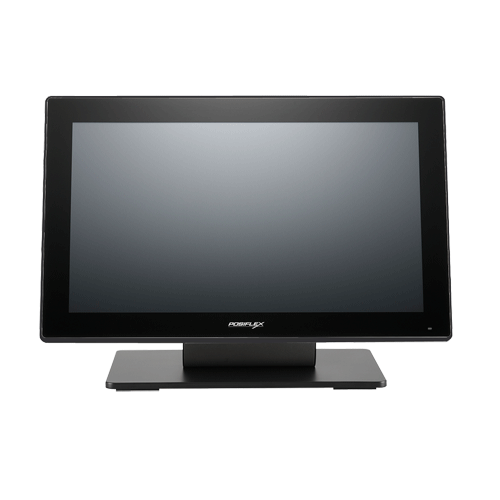

POSIFLEX RT-2016 J1900 4GB 64 GB SSD WIN10 IoT LTSC

(Product may vary from image. Rely only on description for purchasing decisions.)
  • PFRT2016B-4064SE
  • RT201600A63300FJ
  • POSIFLEX
  • RT2016
    • Login to view pricing and availability

RT2016 15.6" Super slim fanfree bezelfree PCAP touch terminal, Intel Bay Trail Celeron up to 2.42G J1900 Quad core, 2M cache, 4GB DDR3L, 64GB SSD, 3 x serial, 1 x USB3.0, 3 x USB2.0, 1 x LAN, 1 x VGA, 1 x Mini DP, WIN10 IoT LTSC 64 Bit PreLoaded

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Slimline 15.6" Fanless Touch POS Terminal
  • Projective Capacitive Touch screen (PCAP)
  • 15.6" LCD 1920 x 1080 resolution
  • Intel J1900 Quad Core CPU up to 2.42 GHz 2M Cache and DDR3L memory
  • Fan-free design boasting quiet and anti-dust features
  • Clean Cable management
  • Aluminium die-cast main housing design for efficient cooling
  • Can be shipped with 10" LCD Customer display mounted
  • Optional USB or Powered USB expansion module in base
NameSizeDownload
Brochure365kb rt20152016_brochure.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel® Bay Trail Quad Core Celeron™ J1900 / 2.0 GHz ~ 2.42 GHz
Memory
DDR3L 800 MHz, SO-DIMM socket x 1, max 8 GB, default 4 GB
Storage device(s)
In Australia Standard with 64 GB SSD, can also be purchased with a 500 GB SATA HDD (Special Order) or larger SSD Drives
2nd SATA Slot available
Display
15" TFT LED Backlit LCD Display
Resolution
1920 x 1080
Tilt Angle
15° to 90°
Touch Panel
Bezel Free: Projected Capacitive Touch supporting 10pts multi-touch
I/O Ports
3 x RS-232 Ports (1 x DB9, 2 x 10 pin RJ50) with 5V/12V Support
4 x USB Ports (1 x USB3.0/2.0 3 x USB2.0)
Optional USB expansion module to bring total to 7 USB Ports (in base, uses USB3.0)
or Optional PoweredUSB expansion module 1x12V & 1 x 24V USB Ports (in base, uses USB3.0)
1 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display (Pin Header with 12V Power for Posiflex LCD Monitors)
1 x mini DP port
1 x M.2 slot
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
Audio
internal 1 x 2W Speaker
OS Support
Windows 7 / POSReady 7 / WIN8.1 Embedded Retail Industry / WIN10 IoT / Linux per request
Environmental Sealing
IP65 to front screen
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (60W)
(Optional 80W when using with 2nd Display)
(Optional 150W when equiped with Powered USB module)
External Dimensions (WxDxH)
402mm x 207mm x 297mm
Weight
5.0 Kg
