POSIFLEX RT-2015G2 J6412 8GB 128GB M.2 SSD IoT LTSC 2021

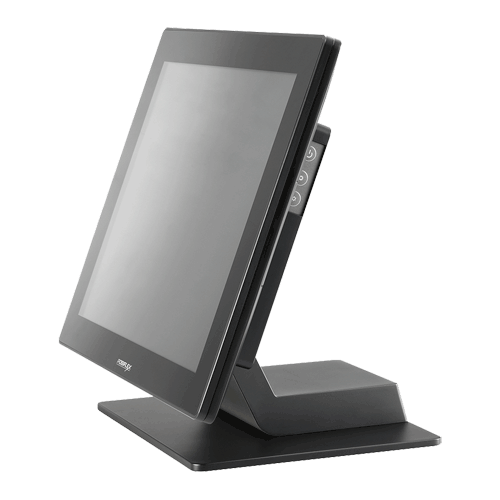

(Product may vary from image. Rely only on description for purchasing decisions.)
  • PFRT2015G-80128S21
  • RT22150130030000FJ
  • POSIFLEX
  • RT2015G2
    • Login to view pricing and availability

15" Super slim fanfree bezelfree PCAP touch terminal, Intel Elkhart Lake J6412, Quad core, up to 2.0GHz (1.5M cache),8GB DDR4, 128GB M.2 SSD, 3 x serial, 2 x USB3.0, 3 x USB2.0, 1 x LAN, 1 x VGA (pin header), 1 x Mini DP, 1 x CR (24V), 1 x SPK, 1 x M.2 exp slot, TPM2.0, WIN10 IoT LTSC 2021 PreLoaded

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Slimline 15" Fanless Touch POS Terminal
  • Projective Capacitive Touch screen (PCAP)
  • 15" LCD 1024 x 768 resolution
  • Elkhart Lake J6412, Quad core, up to 2.6GHz (1.5M cache)
  • DDR4 Memory
  • Fan-free design boasting quiet and anti-dust features
  • Clean Cable management
  • Aluminium die-cast main housing design for efficient cooling
  • Can be shipped with 10" LCD Customer display mounted
  • Optional USB or Powered USB expansion module in base
NameSizeDownload
Brochure321kb rt2015_2016g2_brochure.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Elkhart Lake J6412, Quad core, up to 2.0GHz ~ 2.6 GHz(1.5M cache)
Memory
DDR4, SO-DIMM socket x 2, max 32 GB, default 4 GB
Storage device(s)
In Australia Standard with 128 GB M.2 SSD, can also be purchased with larger SSD Drives
2nd M.2 Slot available
Display
15" TFT LED Backlit LCD Display
Resolution
1024 x 768
Tilt Angle
15° to 90°
Touch Panel
Bezel Free: Projected Capacitive Touch supporting 10pts multi-touch
I/O Ports
3 x RS-232 Ports (1 x DB9, 2 x 10 pin RJ50) with 5V/12V Support
5 x USB Ports (2 x USB3.0/2.0 3 x USB2.0)
Optional USB expansion module to bring total to 7 USB Ports (in base, uses USB3.0)
or Optional PoweredUSB expansion module 1x12V & 1 x 24V USB Ports (in base, uses USB3.0)
1 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display (Pin Header with 12V Power for Posiflex LCD Monitors)
1 x mini DP port
1 x M.2 slot
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
Audio
internal 1 x 2W Speaker
OS Support
Windows 7 / POSReady 7 / WIN8.1 Embedded Retail Industry / WIN10 IoT / Linux per request
Environmental Sealing
IP65 to front screen
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (60W)
(Optional 80W when using with 2nd Display)
(Optional 150W when equiped with Powered USB module)
External Dimensions (WxDxH)
368mm x 207mm x 325mm
Weight
5.4 Kg
