POSIFLEX PS-3615 J6412 8G 128G M.2 SSD WIN10IoT 2021

(Product may vary from image. Rely only on description for purchasing decisions.)
  • PFPS3615G-80128S21
  • PS362501323200W9
  • POSIFLEX
  • PS3615J
    • Login to view pricing and availability

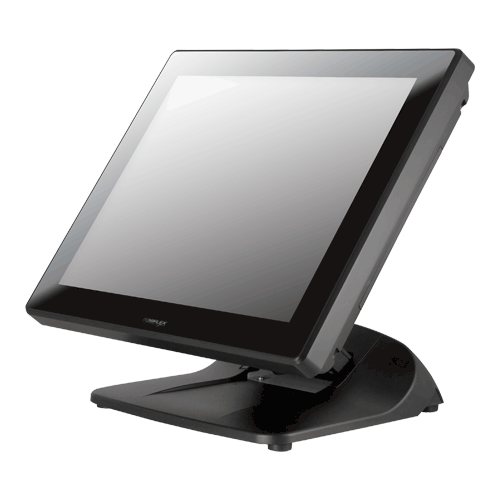

Fanfree 15" TFT LCD PCAP touch terminal (1024*768) with Intel Elkhart Lake J6412 up to 2.6 Ghz (1.5M Cache), 8GB DDR4, 128GB M.2 SSD, GEN7 Base, WIN 10 IoT LTSC 2021 Preloaded

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • PC POS Touch System
  • PCAP Touch Screen
  • 15inch LCD 1024 x 768 Resolution
  • Intel Apollo Lake J3455 Celeron CPU up to 2.3 GHz 2M Cache
  • DDR3L memory
  • M1.2 SSD storage device
  • Gen 7 Slim Line Base
NameSizeDownload
No Downloads

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel Apollo Lake Celeron J3455 CPU, up to 2.3GHz (Burst) / 2M Cache
Memory
DDR3L 1333 MHz, SO-DIMM socket x 1, max 8 GB, default 4 GB
Storage device(s)
In Australia Standard with 128 GB M.2 SSD, can also be purchased with larger SSD Drives.
Display
15" TFT LCD Display
Resolution
1024 x 768
Tilt Angle
15° to 90°
Touch Panel
True-flat PCAP Touch with multitouch control (USB I/F)
I/O Ports
4 x RS-232 Ports (3 x DB9, 1 x 10 pin RJ50) with 5V/12V Support on all COM Ports
5 x Standard USB Ports (1xUSB3.0 & 4 USB2.0)
1 Proprietary USB port for side mount optional devices
1 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x M.2 Port
Audio
Buzzer x 1
Internal 2W Speaker
OS Support
WIN 10IoT
Environmental Sealing
N/A
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (40W)
(Optional 84W when equiped with 2nd Display)
External Dimensions (WxDxH)
372mm x 320mm x 252.7mm
Weight
5.86 Kg
