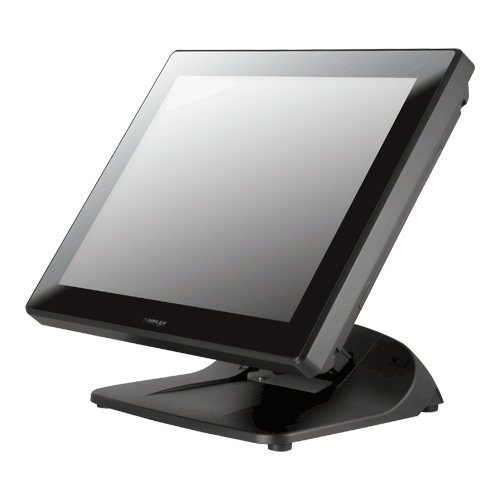

POSIFLEX PS-3615 Fanless 15" POS PCAP Touch Terminal

(Product may vary from image. Rely only on description for purchasing decisions.)

The PS-3615 is a 15" fanless PCAP touch POS Terminal with all the essential functions and capabilities to satisfy businesses of all sizes. It represents one of the best value choices in the entry level POS terminal segment

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • PC POS Touch System
  • PCAP Touch Screen
  • 15inch LCD 1024 x 768 Resolution
  • Intel Apollo Lake J3455 Celeron CPU up to 2.3 GHz 2M Cache
  • DDR3L memory
  • M1.2 SSD storage device
  • Gen 7 Slim Line Base
NameSizeDownload
No Downloads

Products available to purchase

 SKUVendorName
PFLM6810B POSIFLEX9.7" Rear mount Customer LCD Display for PS-Series
PFSA305B3FP-U POSIFLEXMSR attach 3 Trck with FingerPrint Reader for XT
PFSA305B3RF31FP-U POSIFLEXMSR attach 3 Trck with RF310 & FingerPr Rdr for XT
PFSA105B3-U POSIFLEXMSR attachment 3 Track for XT3015 4015
PFSA305B3RF31-U POSIFLEXMSR attachment 3 Track with RF310 for XT3015 4015
PFPD2609B-U POSIFLEXPD-2609B Rear Mount 2 x 20 VFD Display USB for PS
AD-PF12VR60W4P POSIFLEXPower Adaptor 12V 60W for Posiflex System
AD-PF12VR80W4P POSIFLEXPower Adaptor 12V 80W for Posiflex System

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel Apollo Lake Celeron J3455 CPU, up to 2.3GHz (Burst) / 2M Cache
Memory
DDR3L 1333 MHz, SO-DIMM socket x 1, max 8 GB, default 4 GB
Storage device(s)
In Australia Standard with 128 GB M.2 SSD, can also be purchased with larger SSD Drives.
Display
15" TFT LCD Display
Resolution
1024 x 768
Tilt Angle
15° to 90°
Touch Panel
True-flat PCAP Touch with multitouch control (USB I/F)
I/O Ports
4 x RS-232 Ports (3 x DB9, 1 x 10 pin RJ50) with 5V/12V Support on all COM Ports
5 x Standard USB Ports (1xUSB3.0 & 4 USB2.0)
1 Proprietary USB port for side mount optional devices
1 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x M.2 Port
Audio
Buzzer x 1
Internal 2W Speaker
OS Support
WIN 10IoT
Environmental Sealing
N/A
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (40W)
(Optional 84W when equiped with 2nd Display)
External Dimensions (WxDxH)
372mm x 320mm x 252.7mm
Weight
5.86 Kg
