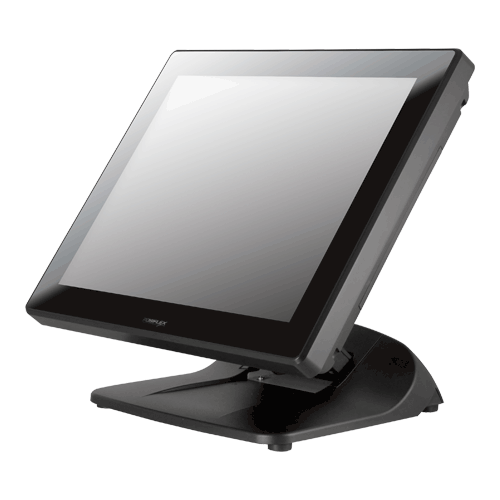

POSIFLEX PS-3216A PCAP Android Touch System

(Product may vary from image. Rely only on description for purchasing decisions.)

Combining excellent high performance and reliability, the new PS-3216A integrates a 15.6” PCAP touchscreen display with Rockchip RK3399 processor. Along with outstanding cable management and easy maintenance functions, it suits perfectly with virtually any point-of-sale environment.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • PC POS Touch System
  • PCAP Touch Screen
  • 15.6 inch LCD 1366 x 768 Resolution
  • Rockchip RK3399, Dual-core Cortex A72 up to 1.8GHz and DDR4 memory
  • 16G eMMC Storage
  • Android 9.0 Operating System
  • Gen 7 Slim Line Base
NameSizeDownload
Brochure214kb PS3216a_brochure.pdf

Products available to purchase

 SKUVendorName
PFPS3216A-2016eA9 POSIFLEXPS-3216A PCAP Tch 2G 16G eMMC And 9.0
PFSA305B3RF31FP-U POSIFLEXMSR attach 3 Trck with RF310 & FingerPr Rdr for XT
PFSA105B3-U POSIFLEXMSR attachment 3 Track for XT3015 4015
PFSA305B3RF31-U POSIFLEXMSR attachment 3 Track with RF310 for XT3015 4015
PFPD2609B-U POSIFLEXPD-2609B Rear Mount 2 x 20 VFD Display USB for PS
AD-PF12VR60W4P POSIFLEXPower Adaptor 12V 60W for Posiflex System

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Rockchip RK3399, Dual-core Cortex A72 up to 1.8GHz + Quad-core Cortex A53 up to 1.4GHz
Memory
2 GB DDR4
Storage device(s)
16 GB eMMC + microSD slot x 1, upgradable to 32GB
Display
15.6" TFT LCD Display
Resolution
1366 x 768
Tilt Angle
15° to 90°
Touch Panel
True-flat PCAP Touch with multitouch control (USB I/F)
I/O Ports
2 x RS-232 Ports DB9
5 x Standard USB 2.0 Ports
1 Proprietary USB port for side mount optional devices
1 x Micro-USB
1 x 10/100/1000Mb Ethernet Port
1 x HDMI Port
1 x Mini-PCIe expansion Slot for Wifi/BT Module
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
Audio
1 x 2W speaker
OS Support
Android 9.0
Environmental Sealing
N/A
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (40W)
External Dimensions (WxDxH)
372mm x 291.4mm x 252.7mm
Weight
5.60 Kg
