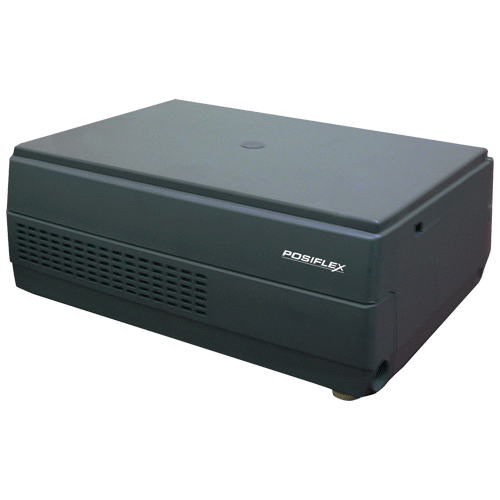

POSIFLEX PB-4700 POS Box Terminal Series ***Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

The PB-4700 is an advanced compact POS box, ideally suited for most retail sectors and cash till areas, where the space is at a premium. It brings greater value to the store owner through compact design, robust performance and superior consumer experience.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • High Performance 4th generation Intel Haswell i3 CPU (optional up to Core i7)
  • Standard with 128G SSD (other options available)
  • 4 GB DDR3L RAM expandable to 16GB
  • Small footprint
  • Powered Serial ports
  • VGA and DP Port
  • Fullsize PCI-E slot via Riser Card
  • Optional Touch monitors, Pole displays available
NameSizeDownload
No Downloads

Products available to purchase

 SKUVendorName
PFCR4100B POSIFLEXCR-4100 Cash Drawer Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Standard Intel Haswell core i3-4330TE -2.4GHz (4M cache)
Factory Option CPU upgrade:
Intel Haswell Core i5-4570TE CPU, up to 3.30 GHz, 4M Cache
Intel Haswell Core i7-4770TE CPU, up to 3.30 GHz, 8M Cache
Memory
DDR3L SO-DIMM x 2, max. 16GB , default 4 GB
Storage device(s)
In Australia Standard with 128 GB SSD, can also be purchased with a 500 GB SATA HDD (Special Order) or larger SSD Drives
I/O Ports
4 x RS-232 Ports (4 x DB9 standard, optional COM5/COM6 with cable from Service window) with 5V/12V Support
1 x Parallel port
8 x USB Ports 2 x USB 3.0/2.0 & 6 x USB 2.0
1 x 10/100/1000Mb Ethernet Port
1 x PS2 Port
1 x VGA Port (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x DP Port
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x Full Size PCI-E slot via Riser Card
Audio
Internal 2W Speaker
1 x Mic-in
1 x Line Out
OS Support
Windows 7/POSReady 7/Windows Embedded 8.1 Industry/Windows 10 IoT/Linux per request
Environmental Sealing
N/A
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (80W)
External Dimensions (WxDxH)
279mm x 243mm x 114mm
Weight
2.5 Kg
