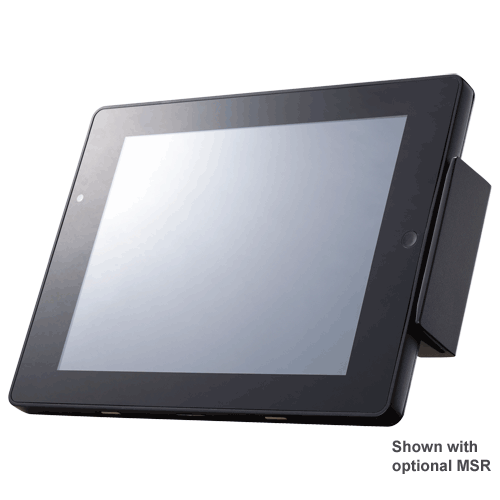

POSIFLEX MT-4310 10" Tablet 4G 64G eMMC WIN IoT LTSC

(Product may vary from image. Rely only on description for purchasing decisions.)
  • PFMT4310-4064eE
  • MT4310WH060016
  • POSIFLEX
  • MT4310
  • Login to view pricing and availability

10" Mobile tablet, Cherry Trail Quad Core 1.44G up to 1.92G, 2M cache, PCAP Touch (Gorilla Glass), 4GB LPDDR3, 64G eMMC, WIN IoT, black colour

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • POS 10" tablet Solution
  • Gorilla glass PCAP touch w/ multi-touch support
  • Optional Pistol grip handle is ergonomically designed for easy handling of the tablet.
  • Hand strap strengthens the stability and eases user’s fatigue during the hours of work.
  • Optional dock station equiped with a built-in 3” thermal printer and various I/O connections
  • Optional MSR attachment
  • Optional 1D or 2D barcode scanner built in the pistol grip
  • MT-4310W is designed with advanced power saving technology that provides long battery life for daily operation.
  • The optional pistol grip also houses a removable battery that vastly extends the overall operating time.
  • 1280 x 80 resolution
  • Windows IoT Mobile Operating System
NameSizeDownload
Brochure574kb mt4310w-g_brochure.pdf
Exploded Parts View63kb MT4310W_Parts_layout.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel Cherry Trail x5-Z8350, 4C, 1.44 GHz up to 1.92 GHz (Burst)
Memory
DDR3L 2GB standard
Storage device(s)
64GB eMMC
Display
10" TFT LCD with LED backlight
400 nits
Resolution
1280 x 800 (default set to 1024 x 768 resolution)
Tilt Angle
NA
Touch Panel
Gorilla glass PCAP touch w/ multi-touch support
I/O Ports
1 x micro SD, 1 x micro SIM, 1 x micro USB
WIFI 802.11abgn 2.4 GHz / 5.0 GHz dual band + BT v4.0
optional 3G (factory fit)
Camera 5MP AF rear facing
Optional Docking Station - 3 x USB 2.0, 1 x LAN, 2 x COM(DB9), 1 x CR port
Audio
1 x built in Speaker
OS Support
Windows 10 IoT 64 bit
Environmental Sealing
front panel IP65 (without optional MSR)
Operating Environment
NA
Storage Environment
NA
Power Supply
Battery - 4800mAh minimum
Pistol Grip Option has extra 5000mAh Battery
External Dimensions (WxDxH)
260.7 x 16.8 x 175 mm
Weight
750g Tablet only
