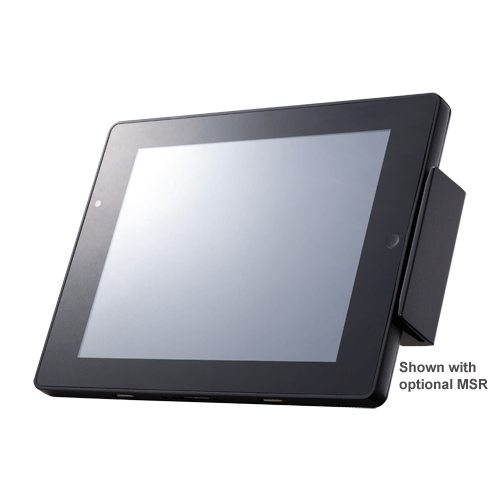

POSIFLEX MT-4308 8" Windows Tablet POS Solution

(Product may vary from image. Rely only on description for purchasing decisions.)

MT-4308W (U.S. Patent 9436226 B2) is specifically designed for both retail and hospitality applications. The retail-ready 8” mobile POS runs on the latest Intel Cherry Trail processor, and supports MSR/RFID attachment, 2D barcode scanner attachment with pistol grip, and an optional dock station to converts the device into a full-fledged, stationary POS.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • POS 8" tablet Solution
  • Gorilla glass PCAP touch w/ multi-touch support
  • Optional Pistol grip handle is ergonomically designed for easy handling of the tablet.
  • Hand strap strengthens the stability and eases user’s fatigue during the hours of work.
  • Optional dock station equiped with a built-in 3” thermal printer and various I/O connections
  • Optional MSR attachment
  • Optional 1D or 2D barcode scanner built in the pistol grip
  • MT-4308W is designed with advanced power saving technology that provides long battery life for daily operation.
  • The optional pistol grip also houses a removable battery that vastly extends the overall operating time.
  • MT-4308W comes with the POS industry standard 1024 x 768 resolution
  • Windows IoT Mobile Operating System
NameSizeDownload
Brochure286kb mt4308w_brochure.pdf
User Manual485kb mt4308W_ume.pdf

Products available to purchase

 SKUVendorName
PFMT4308-4064eE POSIFLEXMT-4308 8" Tablet 4G 64G eMMC WIN10 IoT
PFSD4208B3 POSIFLEX3 Track MSR for MT4008 USB
PFDS220 POSIFLEXDocking Station MT4308 4310G with Dual Rng Wifi Prt
PFPG202 POSIFLEXPistolGrip for MT4008 with 2D Imager Battery
AD-PF5VR15WP0.7 POSIFLEXPower Adapter 5V 15W for MT4x08
PFCS200 POSIFLEXQuad Charging Cradle for the MT-4008
PFCS210 POSIFLEXSingle Charging Cradle for the MT Series
CAB-USBMc2AF01 POSIFLEXUSB Adapter Cable Micro to Female Type A 0.1m

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel Cherry Trail x5-Z8350, 4C, 1.44 GHz up to 1.92 GHz (Burst)
Memory
DDR3L 2GB standard
Storage device(s)
64GB eMMC
Display
8" TFT LCD with LED backlight
Resolution
1280 x 800 (default set to 1024 x 768 resolution)
Tilt Angle
NA
Touch Panel
Gorilla glass PCAP touch w/ multi-touch support
I/O Ports
1 x micro SD, 1 x micro SIM, 1 x micro USB
WIFI 802.11abgn 2.4 GHz / 5.0 GHz dual band + BT v4.0
optional 3G (factory fit)
Camera 8MP AF rear facing
Optional Docking Station - 3 x USB, 1 x LAN, 2 x COM(DB9), 1 x CR port
Audio
1 x built in Speaker
OS Support
Windows 10 IoT 64 bit
Environmental Sealing
front panel IP65 (without optional MSR)
Operating Environment
NA
Storage Environment
NA
Power Supply
Battery - 4800mAh minimum
Pistol Grip Option has extra 5000mAh Battery
External Dimensions (WxDxH)
212mm x 16.8mm x 157mm
Weight
550g
