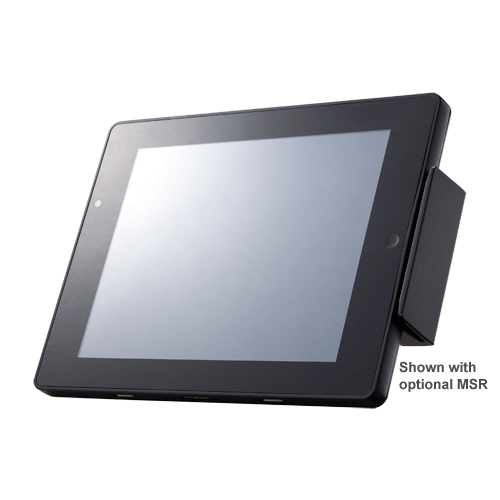

POSIFLEX MT-4008 Windows Tablet POS Solution ***Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

The MT-4008W is specifically created for both retail and hospitality segments. It is an 8” tablet that supports MSR attachment, and can be integrated with the choice of a detachable pistol grip or a hand strap depending on the application. Moreover, an optional docking station with integrated printer allows the device to have the features and functionality of an all-in-one POS.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • POS tablet Solution
  • Optional Pistol grip handle is ergonomically designed for easy handling of the tablet.
  • Hand strap strengthens the stability and eases user’s fatigue during the hours of work.
  • Optional dock station equiped with a built-in 3” thermal printer and various I/O connections
  • Optional MSR attachment
  • Optional 1D or 2D barcode scanner built in the pistol grip
  • MT-4008W is designed with advanced power saving technology that provides long battery life for daily operation.
  • The optional pistol grip also houses a removable battery that vastly extends the overall operating time.
  • MT-4008W comes with the POS industry standard 1024 x 768 resolution
  • Windows 8.1 Mobile Operating System
NameSizeDownload
Brochure278kb mt4008w_brochure.pdf

Products available to purchase

 SKUVendorName
PFSD4208B3 POSIFLEX3 Track MSR for MT4008 USB
PFDS310 POSIFLEXDocking Station MT4008 with Wifi Printer
PFPG202 POSIFLEXPistolGrip for MT4008 with 2D Imager Battery
AD-PF5VR15WP0.7 POSIFLEXPower Adapter 5V 15W for MT4x08
PFCS200 POSIFLEXQuad Charging Cradle for the MT-4008
PFCS210 POSIFLEXSingle Charging Cradle for the MT Series
CAB-USBMc2AF01 POSIFLEXUSB Adapter Cable Micro to Female Type A 0.1m

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel Atom Z3475D, 4 Core, 1.33Ghz/1.86Ghz (Burst)
Memory
DDR3L 2GB standard
Storage device(s)
32GB eMMC
Display
7.85" LCD,
Resolution
1024 x 768
Tilt Angle
NA
Touch Panel
Bezel Free: P-CAP Touch with 10 point multitouch support
I/O Ports
1 x micro SD, 1 x micro SIM, 1 x micro USB
WiFi 802.11bgn 2.4Ghz. Optional BT v4.0
Camera 5MP AF rear facing & 2MP Front Facing
Optional Docking Station - 3 x USB, 1 x LAN, 2 x COM(DB9), 1 x CR port
Audio
1 x built in Speaker
OS Support
Windows Embedded 8.1 industry
Environmental Sealing
front panel IP65 (without optional MSR)
Operating Environment
NA
Storage Environment
NA
Power Supply
Battery - 5000mAh
External Dimensions (WxDxH)
212mm x 16.8mm x 157mm
Weight
550g
