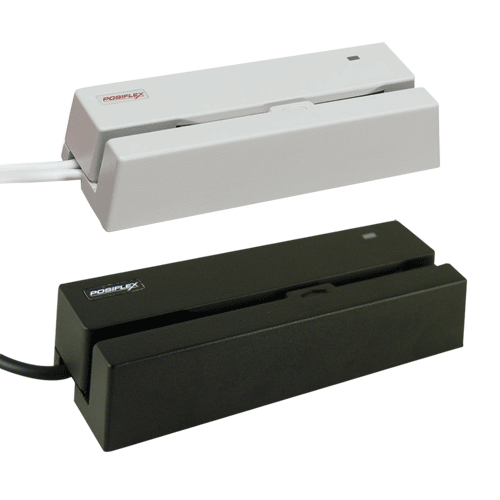

POSIFLEX MR-2200 Magnetic Stripe Card Reader, Dual Head

(Product may vary from image. Rely only on description for purchasing decisions.)

The Posiflex MR-2200 Series Magnetic Stripe Card Reader are heavy duty Die Cast units designed to be used in stand alone desk environments. It is a dual direction Dual Head 3 Track reader. It has a built in decoder and can be purchased with either a RS232 or USB interface.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Magnetic Stripe Card Reader
  • Heavy duty Die Cast Housing
  • Bi-Directional Swipe (Dual Head)
  • 3-Track support
  • Support ISO 7811 magnetic card
  • Built in Interface, choice of KBW, RS232 or USB (HID/VCOM Selectable)
  • Cable for interface included
  • Built in decoder
NameSizeDownload
User Manual105kb ume_mr2xxx.pdf
USB Virtual Com Port Driver2,157kb PF_USBMSR_212_J106.rar

Products available to purchase

 SKUVendorName
PFMR2200B3-R POSIFLEXMR-2200 Dual Hd MSR 3 Tr RS232 with USB pow
PFMR2200B3-U POSIFLEXMR-2200 Dual Hd MSR 3 track USB interface Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Reader Type
Magnetic Swipe Card Reader ISO Dual head
Card Feed Method
Manual Feed Bi-Directional, readers on both sides
Read/Write Function
Read only
Card Type
Compatible card types: ISO7811
Can Also read AAMVA & CA DMV card
Card Feed Speed
5 to 55 inches/sec
Card Data Format
Track 1: IATA
Track 2: ABA
Track 3: THRIFT
Chipcard Protocol
N/A
Transmission Speed
Reader<==>System: max. 12Mbits/sec
Software Interface
N/A
Programming Method
dipswitches
Indicators/Controls
Dual LED Status Display
Communication Type
Cabled, Bi-directional Communication
Interfaces
USB - Ver. 2.0
RS-232
Special Order KBW
Supply Voltage
5 V ± 5 %
Power Consumption
Typical. 100 mA
Operating Environment
0 to 50 °C
RH 5 - 90 % (non-condensing)
Storage Environment
-20 to 65 °C
RH 5 - 90 % (non-condensing)
External Dimensions (WxDxH)
46 x 145 x 34 mm
Weight
approx. 495 g (excl. cable)
