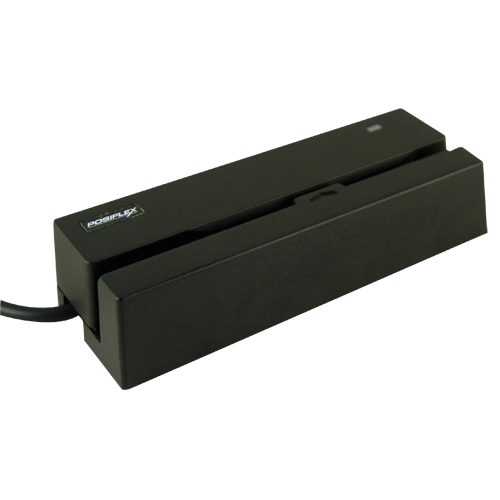

POSIFLEX MR-2100 MSR Track 1 2 3 USB interface Black

(Product may vary from image. Rely only on description for purchasing decisions.)
  • PFMR2100B3-U
  • MR*2106UU3BGD
  • MR2000
  • Login to view pricing and availability

Posiflex MR-2100 Single Head MSR 3 Track USB I/F Black, able to enable any of the 3 tracks

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Magnetic Stripe Card Reader
  • Heavy duty Die Cast Housing
  • Bi-Directional Swipe (Single Head)
  • 3-Track support
  • Support ISO 7811 magnetic card
  • Built in Interface, choice of KBW, RS232 or USB (HID/VCOM Selectable)
  • Cable for interface included
  • Built in decoder
Brochure639kb pfmr2000_brochure.pdf
USB Virtual Com Port Driver2,157kb PF_USBMSR_212_J106.rar
User Manual105kb ume_mr2xxx.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

No Products to Display

Parts documents

Parts layout details

Reader Type
Magnetic Swipe Card Reader ISO Single head
Card Feed Method
Manual Feed Bi-Directional
Read/Write Function
Read only
Card Type
Compatible card types: ISO7811
Can Also read AAMVA & CA DMV card
(special order: JIS X 6302)
Card Feed Speed
5 to 55 inches/sec
Card Data Format
Track 1: IATA
Track 2: ABA
Track 3: THRIFT
Chipcard Protocol
Transmission Speed
Reader<==>System: max. 12Mbits/sec
Software Interface
Programming Method
Dual LED Status Display
Communication Type
Cabled, Bi-directional Communication
USB - Ver. 2.0
Special Order KBW
Supply Voltage
5 V ± 5 %
Power Consumption
Typical. 100 mA
Operating Environment
0 to 50 °C
RH 5 - 90 % (non-condensing)
Storage Environment
-20 to 65 °C
RH 5 - 90 % (non-condensing)
External Dimensions (WxDxH)
46 x 145 x 34 mm
approx. 490 g (excl. cable)
