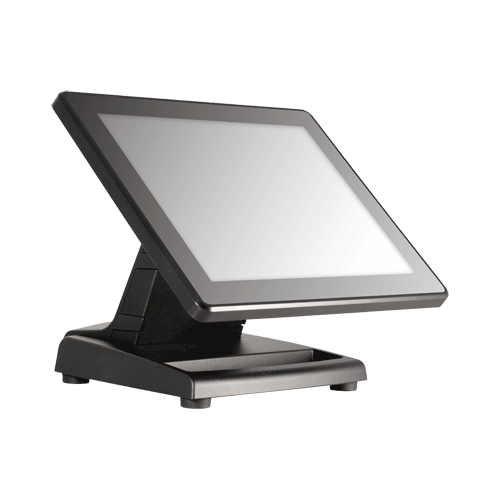

POSIFLEX LM-3110 9.7" Bezelfree monitor

(Product may vary from image. Rely only on description for purchasing decisions.)

10" Bezelfree Standalone LCD Monitor

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Slim bezel-free design
  • 9.7” TFT LCD panel
  • LCD resolution up to 1024 x 768
  • VESA mounting support
  • Dimension : 206 mm (H) x 244.5 mm (W) x 187.5 mm (D); Weight : 1.69 kg
  • Colour : black or white(special order)
NameSizeDownload
No Downloads

Products available to purchase

 SKUVendorName
PFLM3110BF POSIFLEX9.7" colour bezelfree LCD monitor(1024x768 resolut

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Display
9.7" TFT LED Backlit LCD Display
Resolution
1024 x 768
Viewing Area
196.61 (H) x 147.46 (V)
Contrast Ratio
500:1
Brightness
270 cd/m2
Response time
20 ms (Raising) / 20 ms (Falling)
View Angle
70/70/70/60 (U/D/L/R)
Tilt Angle
15° to 70°
Touch Panel
N/A
I/O Ports
N/A
Input Signal
VGA
Audio
N/A
OS Support
Windows XP Pro / POSReady 2009 / Windows 7 / POSReady 7 / WIN8.1 Embedded Retail Industry
Environmental Sealing
N/A
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (18W)
External Dimensions (WxDxH)
206mm x 244.5mm x 187.5mm
Weight
1.69 Kg
EMC/Safety Standards
C-Tick, CE
