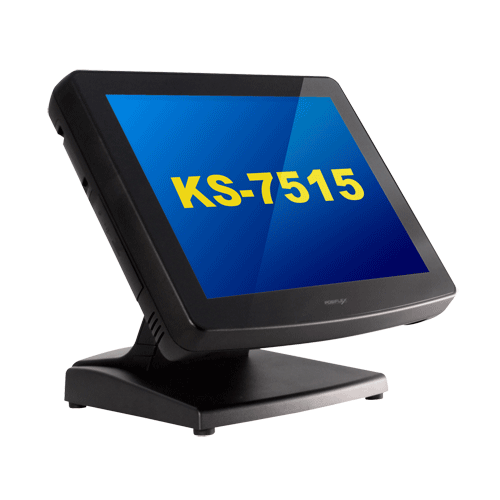

POSIFLEX KS-7515 Fanfree 15" POS Touch Terminal Series ***Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

The KS-7500 Series takes advantage of the Intel Sandy Bridge platform, but with the more economical yet powerful Intel B81X and B950 CPU. It also features a new curvier look that adds a little spice to otherwise elegant looking KS Series exterior. Coupling with Posiflex’s patented Fanfree design, it assures faster transaction, quieter operation, maximum uptime and minimum maintenance. And most importantly, lower total cost of ownership!

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • PC POS Touch System
  • Equipped with Sandy Bridge Intel Pentium B950 2.1GHz CPU and DDR3 memory
  • Resistive, IR, Bezel-free Resistive, or Bezel-free PC touch screen (Bezel-free option for KS-7515 only)
  • 15” LCD 1024 x 768 resolution (KS-7515)
  • UPS (Embedded on main board developed by Posiflex) support to avoid sudden loss of power during transaction
  • FanFree design boasting quiet and anti-dust features
  • Patented aluminum die casting design for efficient cooling
  • Push-open cover to protect power switch from accidental shutdown
  • Bottom cable guide design and cover for safety and neat outlook
  • Firm and slim base stand
  • Shiny diamond black or white front bezel for stunning look (Optional)
NameSizeDownload
Brochure341kb ks7500_brochure.pdf

Products available to purchase

 SKUVendorName
PFLM6801B POSIFLEX12.1" Customer LCD Display for Gen 6 Base KS
CAB-PFCR24V POSIFLEX24VDC Converter for KS XT Cash drawer port
AD-PF12VR130W4P POSIFLEXPower Adaptor 12V 130W for Posiflex Systems
AD-PF12VR150W4P POSIFLEXPower Adaptor 12V 150W for Posiflex Systems
PFRB2000 POSIFLEXRechargeable Battery pack for Mach's with UPS port
PFWB6000VB POSIFLEXWall Mounting Bracket VESA for KS TP

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
KS7215POSIFLEX KS-7215 15" Touch POS Terminal

Parts documents

Parts layout details

Specifications
CPU
Intel Sandy Bridge Pentium B950 2.1 GHz CPU / 2M Cache
Memory
DDR3 1066 MHz, SO-DIMM socket x 2, max 8 GB, default 2 GB
Storage device(s)
In Australia Standard with 32 GB SSD, can also be purchased with a 320 GB SATA HDD (Special Order) or larger SSD Drives (Special Order)
Display
15" Active Matrix LCD Display
Resolution
1024 x 768
Tilt Angle
15° to 70°
Touch Panel
Normal Bezel: 5-wire Resistive (USB I/F) or optional IR Touch (USB I/F)
Bezel Free: Resistive (USB I/F) or optional PC Multi Touch (USB I/F)
I/O Ports
4 x RS-232 Ports (3 x DB9, 1 x 10 pin RJ45) with 5V/12V Support
7 x USB Ports (6 on I/O Panel and 1 on the side)
1 Proprietary USB port for side mount optional devices
1 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x UPS Port (Battery is optional)
Optional Parallel port with Proprietory cable
Audio
2W Speaker x 2 & Line out
OS Support
WIN7 /POSReady 7 /
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (80W) Standard,
Optional upgrade to 120W when equiped with 2nd Display option
External Dimensions (WxDxH)
378mm x 312mm x 340mm
Weight
9.25 Kg
