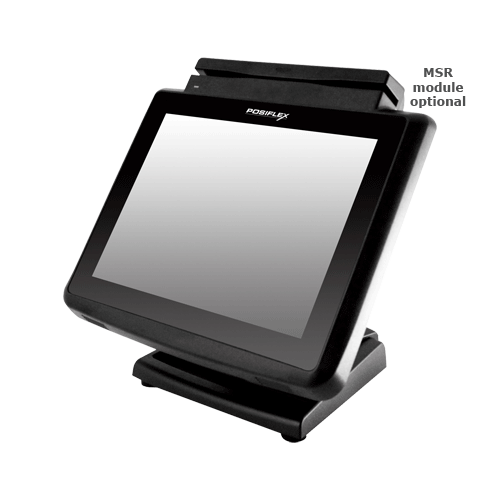

POSIFLEX KS-7410 Fanfree 10" POS Touch Terminal Series ***Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

The KS-7410 is a new Fan Free PCAP Touch Screen System which fits perfectly in a wide variety of POS applications. It has an integrated MSR (module is optional) uses a low power consumption Intel Pine View Dual Core Processor. This unit has a very small footprint

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • PC POS Touch System
  • Fan Free Design
  • Cast Aluminium housing
  • 9.7" LCD Display withPCAP multi touch Touch Screen
  • Equipped with Intel Bay Trail J1900 Quad Core, 2.00GHz/2.42GHz, 2M Cache CPU and DDR3L memory
  • 64 GB or higher SSD Standard
  • 4 GB RAM expandable to 8GB, in Australia 4GB default
  • Powered Serial ports
  • Optional MSR module, 2 Line Pole Display
NameSizeDownload
No Downloads

Products available to purchase

 SKUVendorName
CAB-PFCR24V POSIFLEX24VDC Converter for KS XT Cash drawer port
CAB-PFKS72PAR POSIFLEXParallel Port Cable for KS68 69 72 Series
CAB-PFRJ45DB9M POSIFLEXRJ45 to DB9M RS232 adapter Cable for Posiflex
PFWB6812 POSIFLEXWall Mounting Bracket for KS6812 2010 TM LM 2008

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
KS7210POSIFLEX KS-7210 10" Touch POS Terminal
KS7310POSIFLEX KS-7310 10" Touch POS Terminal

Parts documents

Parts layout details

Specifications
CPU
Intel Bay Trail J1900, 4C, 2.00GHz/2.42GHz, 2M Cache
Memory
DDR3L 1333MHz SO-DIMM x 1, max. 8GB, default 4 GB
Storage device(s)
In Australia Standard with 64 GB SSD in the Base stand, can also be purchased with a 500 GB SATA HDD (Special Order) or larger SSD Drives
Display
9.7" TFT LCD Display
Resolution
1024 x 768
Tilt Angle
20° to 90°
Touch Panel
True Flat PCAP touch with 10 Point multi touch
I/O Ports
3 x RS-232 Ports (2 x DB9, 1 x 10 pin RJ50) with 5V Support
6 x USB 2.0 Ports
1 x VGA, 12V support for Posiflex monitors
1 x 10/100/1000Mb Ethernet Port
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
Extension slot for M.2 x 1 (NGFF2230 for optional WIFI/BT module supporting 802.11ac, 2.4GHz / 5GHz dual band)
Audio
Internal 2W Speaker & Line out port
OS Support
POSReady 7 / Windows 7 / Windows Embedded 8.1 Industry / Windows IoT / Linux per request
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (50W)
External Dimensions (WxDxH)
260mm x 205mm x 266mm
Weight
3.2 Kg
