POSIFLEX KS-7217 Fanfree 17" POS Touch Terminal Series ***Obsolete***

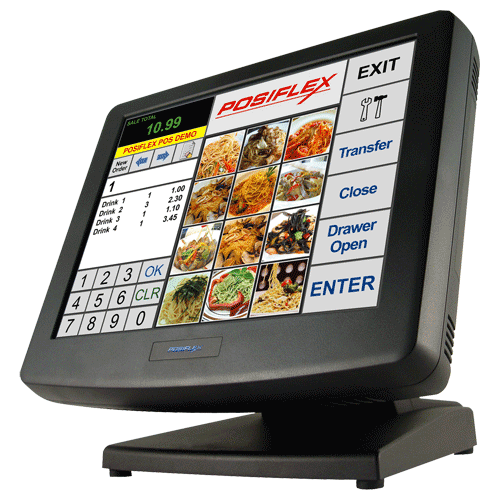

(Product may vary from image. Rely only on description for purchasing decisions.)

The KS-7200 series stands out by its streamlined and patented aluminium die-cast housing design, PineView 1.8 Ghz Duo Core CPU, Fanfree, Resistive or IR touch screen, optional RAID 1 backup and UPS functions. The built-in UPS function is embedded on main board developed by Posiflex for better stability than others. Spill-resistant and anti-dust features allow it to operate calmly even in a harsh environment.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • PC POS Touch System
  • Resistive or IR touch screen
  • 17” LCD 1280 x 1024
  • Spill-resistant design (IP44 capable) to prevent careless spill and provide easy cleaning for a wide range of applications
  • Equipped with Intel Pine View D525 1.8 GHz Duo Core CPU and DDR3 memory
  • Fan-free design boasting quiet and anti-dust features
  • Patented aluminium die-cast housing design for efficient cooling
  • RAID 1 (Disk Mirroring) support to backup important data (Optional)
  • UPS (Embedded on board developed by Posiflex) support to avoid sudden power loss (Optional)
  • Patented finger lever “Gear Lock” to adjust the LCD tilt angle from 15° to 70°
  • Push-open cover to protect power switch from accidental shutdown
  • Bottom cable guide design and cover for safety and neat outlook
  • User-friendly mechanism for system upgrade and easy maintenance
NameSizeDownload
Brochure833kb ks7200_brochure.pdf

Products available to purchase

 SKUVendorName
PFLM6101B POSIFLEX12.1" Customer LCD Display for Jiva & KS Series
AD-PF12VR80W4P POSIFLEXPower Adaptor 12V 80W for Posiflex System
PFRB2000 POSIFLEXRechargeable Battery pack for Mach's with UPS port
PFWB6000VB POSIFLEXWall Mounting Bracket VESA for KS TP
RWD100 BIXOLONWLAN Dongle for SRPF310

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel Pine View D525 Dual Core 1.8Ghz CPU / 1M Cache
Memory
DDR3 800 MHz, SO-DIMM socket x 1, max 4 GB, default 2 GB
Storage device(s)
In Australia Standard with 32 GB SSD in the Base stand, can also be purchased with a 320 GB SATA HDD (Special Order) or larger SSD Drives
Display
17" Active Matrix LCD Display
Resolution
1280 x 1024
Tilt Angle
15° to 70°
Touch Panel
5-wire Resistive (USB I/F) or optional IR Touch (USB I/F)
I/O Ports
4 x RS-232 Ports (2 x DB9, 2 x 10 pin RJ45) with 5V/12V Support
6 x USB Ports (6 on I/O Panel and 1 on the side)
1 Proprietary USB port for side mount optional devices
1 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x UPS Port (Battery is optional)
Optional Parallel port with Proprietory cable
Audio
2W Speaker
OS Support
Windows XP Pro / POSReady 2009 / Windows 7 / POSReady 7 / Linux per request
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (80W)
External Dimensions (WxDxH)
410mm x 380mm x 299mm
Weight
11 Kg
