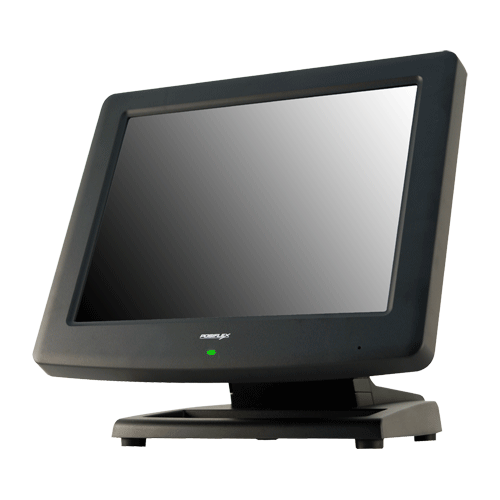

POSIFLEX KS-7212 Fanfree 12" POS Touch Terminal Series ***Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

The KS7212 is a Fan Free Touch Screen System which fits perfectly in a wide variety of POS applications. It uses the new low power consumption Intel DC Pineview Processor. This unit has a small footprint

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • PC POS Touch System
  • Fan-free design boasting quiet and anti-dust features
  • Patented aluminium die-cast housing design for efficient cooling
  • 12" LCD Display with 5-wire Resistive Touch Screen
  • Equipped with Intel Pine View Dual Core D525 1.8 GHz CPU and DDR3 memory
  • 32 GB or higher SSD
  • 2Gb RAM expandable to 4Gb
  • Powered Serial ports
  • Optional CF Slot
  • Optional MSR, 2 Line Pole Display
NameSizeDownload
Brochure487kb ks7212_brochure.pdf

Products available to purchase

 SKUVendorName
PFWB6812 POSIFLEXWall Mounting Bracket for KS6812 2010 TM LM 2008

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel Pine View D525 Dual Core 1.8Ghz CPU / 1M Cache
Memory
DDR3 800 MHz, SO-DIMM socket x 1, max 4 GB, default 2 GB (Australia)
Storage device(s)
In Australia Standard with 32 GB SSD, can also be purchased with a 320 GB SATA HDD (Special Order) or larger SSD Drives
Display
12" TFT LCD Display, LED Backlit
Resolution
1024 x 768
Tilt Angle
20° to 90°
Touch Panel
5-wire Resistive (USB I/F)
I/O Ports
4 x RS-232 Ports (2 x DB9, 2 x 10 pin RJ45) with 5V/12V Support
6 x USB Ports (6 on I/O Panel and 1 on the side)
1 Proprietary USB port for side mount optional devices
1 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
Optional Parallel port with Proprietory cable
Audio
2W Speaker
OS Support
/ Windows 7 / POSReady 7 / Linux per request
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (50W)
External Dimensions (WxDxH)
360.9mm x 262.3mm x 288mm
Weight
4.1 Kg
