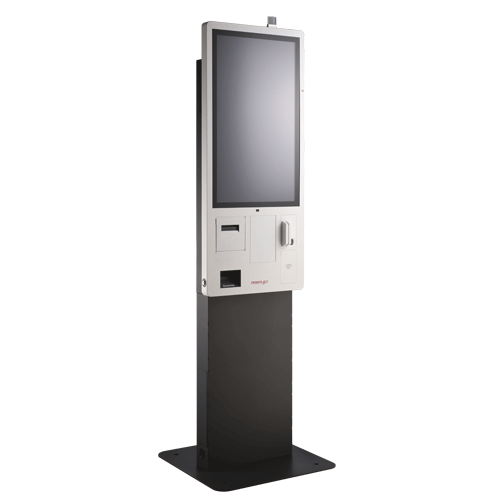

POSIFLEX JK-3232 Cachet 32" Kiosk (J6412) System Series

(Product may vary from image. Rely only on description for purchasing decisions.)

Designed with slimness and flexibility in mind, the Cachet JK-3200 Series is a 32" kiosk that offers endless different ways to blend into any retail environment. With a true-flat enclosure, along with a wide range of peripheral options, the Cachet JK-3200 Series is capable of processing all the self-service applications while helping retailers to build intimate relationships with customers.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Pole or wall mounted slimline Kiosk
  • Also available in Dual Pole Mounting
  • Standard with 3" Printer, Camera, Proximity Sensor and Status Indicator
  • Intel® Elkhart J6412 Quad Core CPU, up to 2.6 GHz, 1.5M Cache
  • Easy Maintenance - all accesable from the front
  • Many options available:
  • Scanner, MSR, Fingerprint reader, Wide angle Camera
NameSizeDownload
Brochure2,086kb jk3200_brochure.pdf

Products available to purchase

 SKUVendorName
PFJK3232S-40128SMC21 POSIFLEXJK-3232 Kiosk J6412 4G 128G SSD 2D Scn MSR IoT21

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel® Elkhart Quad Core Celeron™ J6412 / 2.0 GHz ~ 2.6 GHz
Memory
DDR4 SO-DIMM socket x 1, max 8 GB, default 4 GB
Storage device(s)
In Australia Standard with 128 GB M.2 SSD, can also be purchased with larger SSD Drives
Display
32" TFT LED Backlit LCD Display
Resolution
1920 x 1080
Touch Panel
True-flat PCAP touch with multi-touch support
I/O Ports
3 x RS-232 Ports (1 x DB9, 2 x 10 pin RJ50) with 5V/12V Support
8 x USB Ports (2 x USB3.0/2.0 & 6 x USB2.0)
2 x 10/100/1000Mb Ethernet Port
1 x M.2 Expansion slot
1 x HDMI port
Audio
Internal 3W speaker x 2
OS Support
Windows 10 IoT 64 Bit
Options
Standard Pedestal (Single or Double) or Wall mount
M.2 Wifi/BT Module (cannot coexist with 4G/LTE Module)
2D Barcode Scanner
Custom Brackets for Payment terminals
MSR 3 Tracks ISO or JOSII (HID/VCOM selectable)
Fingerprint reader
NFC Reader, Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols - tag read/write (ISO/IEC-18092)
4G/LTE module, Support selected bands & countries with full SIM slot (mini-PCIe module) by request (cannot coexist with WiFi)
Environmental Sealing
N/A
Operating Environment
0 ~ +50 °C, 10 ~ 90% RH with SSD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V/84W x 1 + 24V/60W x 1
External Dimensions (WxDxH)
602mm x 602mm x 1902mm (With Pole/base plate)
495mm x 152mm x 1189mm (with wall mount bracket)
Weight
65 Kg (Single with pole)
81.5 Kg (Double Sided with Pole)
35 Kg (with wall mount bracket)
