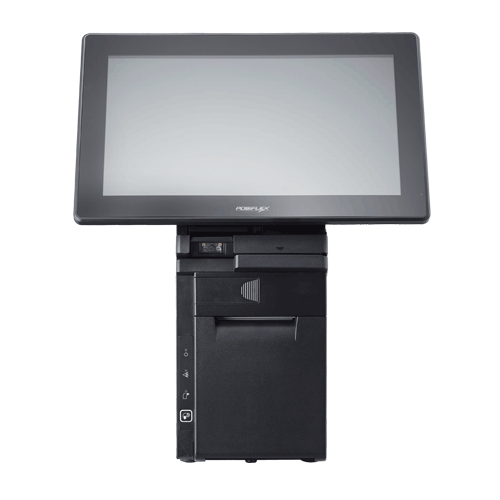

POSIFLEX HS-3514-G2 All-in-one 14" POS Touch Terminal Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The HS-3500-G2 Series is an upgrade HS-3500 series with the new Elkhart J6412 CPU and is still the solution for the counter space problem. It takes the all-in-One concept to the extreme! The compact all-in-one design of HS-3500 Series frees more room for counter space, so that the store owner can display and promote more merchandise to maximize sales opportunities. The upgrade is the easy replaceable printer module for better serviceability in the field and the latest Intel J6412 CPU solution

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Fan free all-in-one POS Terminal
  • 14" LCD Display with PCAP Touch
  • Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache and DDR4 memory
  • All-in-one design
  • Small footprint
  • Build in 80mm high speed thermal Printer
  • Easy replaceable Printer Module
  • Optional build in RFID Reader, MSR, Contact Card Reader, Fingerprint module
  • Several Customer Display Options available
  • Comes with Bracket to lock down to bench for better stability
NameSizeDownload
Brochure3,446kb hs3510_12_14-G2_Brochure.pdf

Products available to purchase

 SKUVendorName
PFLM3010HBF POSIFLEX9.7" Customer LCD Monitor for HS Series
PFWF650BT POSIFLEXMini PCIe Wifi Bluetooth module with External Antenn
PFPD2607B-U POSIFLEXPD2607 Rear Mount Display 2 x 20 VFD USB for HS
AD-PF24VR60W3P POSIFLEXPower Adapter 24V 60W
PFTM3010HCB POSIFLEXRear Mnt 9.7" Touch Monitor PCAP for HS Series

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache
Memory
DDR4 SO-DIMM x 2, max. 32GB default 4GB
Storage device(s)
In Australia standard with 128 GB M.2 SSD
Also Available larger SSD on request
2 x M.2 Connectors (Supporting AHCI mode)
Display
14" TFT LCD Display
Resolution
1366 x 768
Tilt Angle
17 ~ 45°
Touch Panel
True-Flat PCAP touch with 10 point multi-touch support
I/O Ports
3 x RS232 Ports, DB9 x 2 + RJ50 x 1, 5V/12V support on all COM ports
4 x USB Ports: 1 x USB3.0/2.0 & 3 x USB2.0
1 x Parallel Port
1 x VGA Port for 2nd Display with 12V power for Posiflex Monitor
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable) supports 24V Solenoids
1 x 10/100/1000 Ethernet Port
1 x M.2 Expansion Slot
I/O Devices (Intergrated)
80 mm Thermal Printer, 200 mm/sec, with Auto Cutter, easy field replaceable
Optional:
MSR 3 tracks ISO or JISII HID/VCOM Selectable
Smartcard Reader
RFID Reader HID/VCOM Selectable
Fingerprint Reader
M.2 WiFi/BT module
2D Barcode Scanner
4G/LTE Module
Audio
Line out Only
OS Support
WIN 10 IoT
Environmental Sealing
IP65 to front of screen
Operating Environment
SSD: 0°C - 40°C, 20% - 90% Relative Humidity
Storage Environment
-20°C - 70°C, 10% - 90% Relative Humidity
Power Supply
External Power Adapter 24V, 100W
External Dimensions (WxDxH)
371.5mm x 198mm x 473mm
Weight
6 Kg
