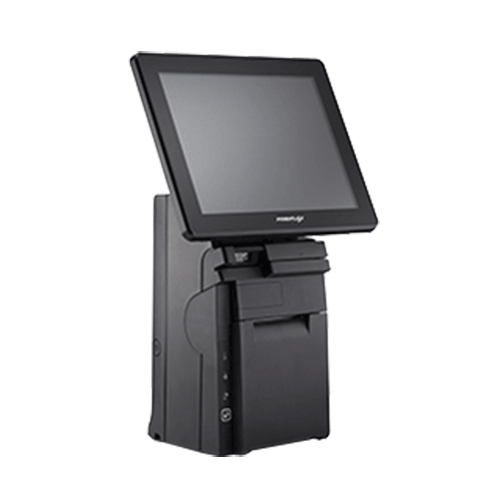

POSIFLEX HS-3512 Term 4G 64G SSD Fingerprint Read Win10IoT

(Product may vary from image. Rely only on description for purchasing decisions.)
  • PFHS3512B-4064SFPE
  • HS351203A68012
  • POSIFLEX
  • HS3512
    • Login to view pricing and availability

HS-3512 all-in-one 12" Mini fanfree bezeless touch (PCAP) terminal Intel J1900 Quad core up to 2.42Ghz 2M cache with 3" (200mm/sec) thermal printer, auto cutter. 4GB DDR3L, 128GB SSD, WIN10 Entry Preloaded 64 Bit LTSC 2019, Fingerprint Reader

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Fan free POS Terminal
  • 12.1" LCD Display with PCAP Touch
  • Intel J1900 Quad Core CPU up to 2.42 GHz 2M Cache and DDR3L memory
  • All-in-one design
  • Small footprint
  • Build in 80mm high speed thermal Printer
  • Easy replaceable Printer Module
  • Optional build in RFID Reader, MSR, Contact Card Reader, Fingerprint module
  • Several Customer Display Options available
  • Comes with Bracket to lock down to bench for better stability
NameSizeDownload
Brochure5,117kb hs3510_3512_3514_brochure.pdf
Exploded Parts View399kb HS3512W_Parts_layout.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
SPT7510SAM4S SPT-7500 All-in-One Series 15" Touch Terminal

Parts documents

Parts layout details

Specifications
CPU
Intel Bay Trail Qual Core up to 2.42G, 2M cache
Memory
DDR3L 1333 MHz, SO-DIMM socket x 1, max 8 GB, default 4 GB
Storage device(s)
In Australia standard with 64 GB SSD
Also Available with HDD or larger SSD on request
Display
12.1" LCD Display
Resolution
1024 x 768
Tilt Angle
17 ~ 45°
Touch Panel
True-Flat PCAP touch with 10 point multi-touch support
I/O Ports
3 x RS-232 interfaces; DB9 x2 & RJ-45 x1 with 5V or 12V support on COM1/COM2/COM3
4 x USB Ports: 1 x USB3.0/2.0 & 3 x USB2.0
1 x Parallel Port
1 x VGA Port for 2nd Display with 12V power for Posiflex Monitor
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x 10/100/1000 Ethernet Port
1 x Mini-PCIe Slot
I/O Devices (Intergrated)
80 mm Thermal Printer, 200 mm/sec, with Auto Cutter, easy field replaceable
Optional:
MSR 3 tracks ISO or JISII HID/VCOM Selectable
Smartcard Reader
RFID Reader HID/VCOM Selectable
Fingerprint Reader
Mini-PCIe Wifi Module
Audio
Line out Only
OS Support
POSReady 7 / Windows 7 / Windows Embedded 8.1 Industry / WIN 10 IoT / Linux per request
Environmental Sealing
IP65 to front of screen
Operating Environment
SSD: 0 °C ~ 50 °C, 20% ~ 90% Relative Humidity
HDD: 0 °C ~ 40 °C, 20% ~ 90% Relative Humidity
Storage Environment
-20 °C ~ 70 °C, 10% ~ 90% Relative Humidity
Power Supply
External Power Adapter 24V, 60W
External Dimensions (WxDxH)
224.5mm x 185mm x 387mm
Weight
4.2 Kg
