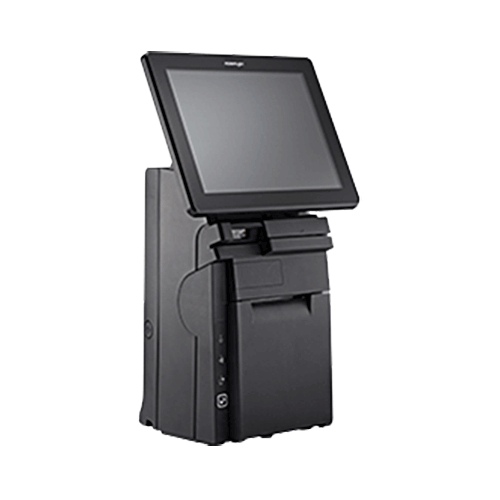

POSIFLEX HS-3510 Terminal 4G 64G SSD MSR POSR7 64b

(Product may vary from image. Rely only on description for purchasing decisions.)
  • PFHS3510CB-4064SMZ
  • HS351003268102FJ
  • POSIFLEX
  • HS3510
    • Login to view pricing and availability

HS-3510 9.7" mini All-in-one fanfree PCAP touch terminal,Intel J1900 Quad core up to 2.42Ghz 2M cache, 4GB DDR3L, 64GB SSD, 3" 200mm/sec printer (auto cutter), 3 Track MSR, POSReady 7 64 Bit Preloaded

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Fan free POS Terminal
  • 9.7" LCD Display with PCAP Touch
  • Intel J1900 Quad Core CPU up to 2.42 GHz 2M Cache and DDR3L memory
  • All-in-one design
  • Small footprint
  • Build in 80mm high speed thermal Printer
  • Easy replaceable Printer Module
  • Optional build in RFID Reader, MSR, Contact Card Reader, Fingerprint module
  • Several Customer Display Options available
  • Comes with Bracket to lock down to bench for better stability
NameSizeDownload
Brochure504kb hs3510w-3512w_brochure.pdf
Exploded Parts View392kb HS3510W_Parts_layout.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel Bay Trail Qual Core up to 2.42G, 2M cache
Memory
DDR3L 1333 MHz, SO-DIMM socket x 1, max 8 GB, default 4 GB
Storage device(s)
In Australia standard with 64 GB SSD
Also Available with HDD or larger SSD on request
Display
9.7" LCD Display
Resolution
1024 x 768
Tilt Angle
17 ~ 45°
Touch Panel
True-Flat PCAP touch with 10 point multi-touch support
I/O Ports
3 x RS-232 interfaces; DB9 x2 & RJ-45 x1 with 5V or 12V support on COM1/COM2/COM3
4 x USB Ports: 1 x USB3.0/2.0 & 3 x USB2.0
1 x Parallel Port
1 x VGA Port for 2nd Display with 12V power for Posiflex Monitor
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x 10/100/1000 Ethernet Port
1 x Mini-PCIe Slot
I/O Devices (Intergrated)
80 mm Thermal Printer, 200 mm/sec, with Auto Cutter, easy field replaceable
Optional:
MSR 3 tracks ISO or JISII HID/VCOM Selectable
Smartcard Reader
RFID Reader HID/VCOM Selectable
Fingerprint Reader
Mini-PCIe Wifi Module
Audio
Line out Only
OS Support
POSReady 7 / Windows 7 / Windows Embedded 8.1 Industry / WIN 10 IoT / Linux per request
Environmental Sealing
IP65 to front of screen
Operating Environment
SSD: 0 °C ~ 50 °C, 20% ~ 90% Relative Humidity
HDD: 0 °C ~ 40 °C, 20% ~ 90% Relative Humidity
Storage Environment
-20 °C ~ 70 °C, 10% ~ 90% Relative Humidity
Power Supply
External Power Adapter 24V, 60W
External Dimensions (WxDxH)
224.5mm x 185mm x 387mm
Weight
4.2 Kg
