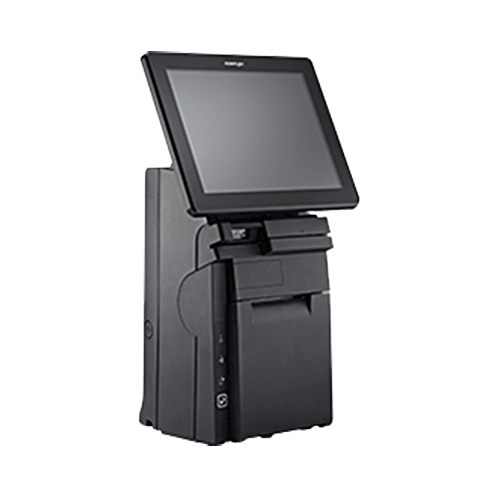

POSIFLEX HS-3510 All-in-one 9.7" POS Touch Terminal Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The HS-3500 Series is an upgrade from the HS-2500 series and is still the solution for the counter space problem. It takes the all-in-One concept to the extreme! The compact all-in-one design of HS-3500 Series frees more room for counter space, so that the store owner can display and promote more merchandise to maximize sales opportunities. The upgrade is the easy replaceable printer module for better serviceability in the field.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Fan free POS Terminal
  • 9.7" LCD Display with PCAP Touch
  • Intel J1900 Quad Core CPU up to 2.42 GHz 2M Cache and DDR3L memory
  • All-in-one design
  • Small footprint
  • Build in 80mm high speed thermal Printer
  • Easy replaceable Printer Module
  • Optional build in RFID Reader, MSR, Contact Card Reader, Fingerprint module
  • Several Customer Display Options available
  • Comes with Bracket to lock down to bench for better stability
NameSizeDownload
Brochure504kb hs3510w-3512w_brochure.pdf

Products available to purchase

 SKUVendorName
PFLM3010HBF POSIFLEX9.7" Customer LCD Monitor for HS Series
PFWF650BT POSIFLEXMini PCIe Wifi Bluetooth module with External Antenn
PFPD2607B-U POSIFLEXPD2607 Rear Mount Display 2 x 20 VFD USB for HS
AD-PF24VR60W3P POSIFLEXPower Adapter 24V 60W
PFTM3010HCB POSIFLEXRear Mnt 9.7" Touch Monitor PCAP for HS Series
T8080L48 GOODSONPremium Thermal rolls 80x80 48 rolls per box
T8080 GOODSONT8080 Premium Thermal rolls 80x80 (24 per Box)

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel Bay Trail Qual Core up to 2.42G, 2M cache
Memory
DDR3L 1333 MHz, SO-DIMM socket x 1, max 8 GB, default 4 GB
Storage device(s)
In Australia standard with 64 GB SSD
Also Available with HDD or larger SSD on request
Display
9.7" LCD Display
Resolution
1024 x 768
Tilt Angle
17 ~ 45°
Touch Panel
True-Flat PCAP touch with 10 point multi-touch support
I/O Ports
3 x RS-232 interfaces; DB9 x2 & RJ-45 x1 with 5V or 12V support on COM1/COM2/COM3
4 x USB Ports: 1 x USB3.0/2.0 & 3 x USB2.0
1 x Parallel Port
1 x VGA Port for 2nd Display with 12V power for Posiflex Monitor
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x 10/100/1000 Ethernet Port
1 x Mini-PCIe Slot
I/O Devices (Intergrated)
80 mm Thermal Printer, 200 mm/sec, with Auto Cutter, easy field replaceable
Optional:
MSR 3 tracks ISO or JISII HID/VCOM Selectable
Smartcard Reader
RFID Reader HID/VCOM Selectable
Fingerprint Reader
Mini-PCIe Wifi Module
Audio
Line out Only
OS Support
POSReady 7 / Windows 7 / Windows Embedded 8.1 Industry / WIN 10 IoT / Linux per request
Environmental Sealing
IP65 to front of screen
Operating Environment
SSD: 0 °C ~ 50 °C, 20% ~ 90% Relative Humidity
HDD: 0 °C ~ 40 °C, 20% ~ 90% Relative Humidity
Storage Environment
-20 °C ~ 70 °C, 10% ~ 90% Relative Humidity
Power Supply
External Power Adapter 24V, 60W
External Dimensions (WxDxH)
224.5mm x 185mm x 387mm
Weight
4.2 Kg
