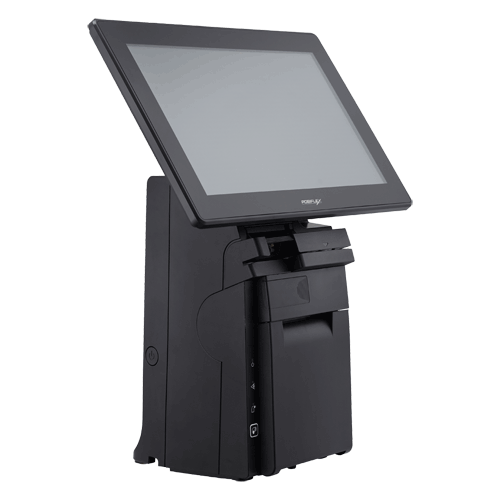

POSIFLEX HS-3114A All-in-one 14" Android POS System

(Product may vary from image. Rely only on description for purchasing decisions.)

The HS-3114A is the best value option for small stores where the counter space needs to be maximized smartly. It is an Android based all-in-one POS featuring a detachable printer for easy maintenance, and can be integrated the most widely used peripheral options in daily POS operation.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Fan free POS Terminal
  • Android 7.0
  • 14" LCD Display with PCAP Touch
  • All-in-one design
  • Small footprint
  • Build in 80mm high speed thermal Printer
  • Easy replaceable Printer Module
  • Optional build in RFID Reader, MSR, Contact Card Reader, Fingerprint module
  • Several Customer Display Options available
  • Comes with Bracket to lock down to bench for better stability
NameSizeDownload
Brochure235kb hs3114a_brochure.pdf

Products available to purchase

 SKUVendorName
PFLM3010HBF POSIFLEX9.7" Customer LCD Monitor for HS Series
PFWF650BT POSIFLEXMini PCIe Wifi Bluetooth module with External Antenn
PFPD2607B-U POSIFLEXPD2607 Rear Mount Display 2 x 20 VFD USB for HS
AD-PF24VR60W3P POSIFLEXPower Adapter 24V 60W
PFTM3010HCB POSIFLEXRear Mnt 9.7" Touch Monitor PCAP for HS Series
T8080L48 GOODSONPremium Thermal rolls 80x80 48 rolls per box
T8080 GOODSONT8080 Premium Thermal rolls 80x80 (24 per Box)

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Allwinner A64 Quad Core CPU, 1.20GHz
Memory
DDR3 2 GB
Storage device(s)
16 GB MMC
Display
14" LCD Display
Resolution
1366 x 768
Tilt Angle
17 ~ 45°
Touch Panel
True-Flat PCAP touch with 10 point multi-touch support
I/O Ports
3 x RS-232 interfaces; DB9 x2 with 5V or 12V
3 x USB Ports USB2.0
1 x VGA Port for 2nd Display with 12V power for Posiflex Monitor
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x 10/100/1000 Ethernet Port
1 x Wifi802.11 a/c + Bluetooth 4.0 module
1 x micro SD slot
I/O Devices (Intergrated)
80 mm Thermal Printer, 200 mm/sec, with Auto Cutter, easy field replaceable
Optional:
MSR 3 tracks ISO or JISII HID/VCOM Selectable
RFID Reader Support MIFARE Ultralight and Classic 1K card HID/VCOM Selectable
Fingerprint Reader
2D Scanner module
4G Communication Module
Audio
2W Speaker x1
OS Support
Android 7.0
Environmental Sealing
IP65 to front of screen
Operating Environment
SSD: 0 °C ~ 50 °C, 20% ~ 90% Relative Humidity
Storage Environment
-20 °C ~ 70 °C, 10% ~ 90% Relative Humidity
Power Supply
External Power Adapter 24V, 60W
External Dimensions (WxDxH)
371.5mm x 198mm x 473mm
Weight
5.8 Kg
