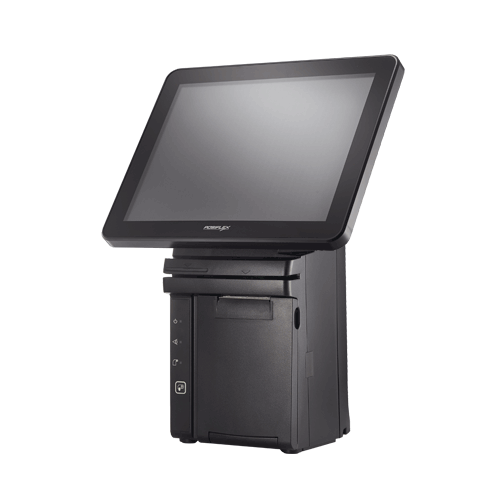

POSIFLEX HS-2512 All-in-one 12.1" POS Touch Terminal Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The HS-2500 Series is the solution for the counter space problem. It takes the all-in-One concept to the extreme! The compact all-in-one design of HS-2500 Series frees more room for counter space, so that the store owner can display and promote more merchandise to maximize sales opportunities.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Fan free POS Terminal
  • All-in-one design
  • 12.1" LCD PCAP Touch Screen
  • Intel J1900 Quad Core CPU up to 2.42 GHz 2M Cache and DDR3L memory
  • Small footprint
  • Build in 80mm Thermal Printer
  • Optional build in RFID Reader, MSR, Contact Card Reader, Fingerprint module
  • Several Customer Display Options available
  • Comes with Bracket to lock down to bench for better stability
NameSizeDownload
Brochure446kb hs2510w_2512w_brochure.pdf

Products available to purchase

 SKUVendorName
PFHS2512B-4064SRME POSIFLEXHS-2512 Term 4G 64G SSD MSR RFID Win10IoT LTSC
PFHS2512B-80128SRME POSIFLEXHS-2512 Term 8G 128G SSD MSR RFID WIN10Iot LTSC
PFHS2512B-80128SME POSIFLEXHS-2512 Term 8G 128G SSD MSR Win10IoT LTSC
PFLM3010HBF POSIFLEX9.7" Customer LCD Monitor for HS Series
PFWF650BT POSIFLEXMini PCIe Wifi Bluetooth module with External Antenn
PFPD2607B-U POSIFLEXPD2607 Rear Mount Display 2 x 20 VFD USB for HS
AD-PF12VR130W4P POSIFLEXPower Adaptor 12V 130W for Posiflex Systems
PFTM3010HCB POSIFLEXRear Mnt 9.7" Touch Monitor PCAP for HS Series
T8080 GOODSONT8080 Premium Thermal rolls 80x80 (24 per Box)
T8080L48 GOODSONPremium Thermal rolls 80x80 48 rolls per box

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
SPT7510SAM4S SPT-7500 All-in-One Series 15" Touch Terminal

Parts documents

Parts layout details

Specifications
CPU
Intel Celeron J1900 Qual Core 2 GHz up to 2.42 GHz, 2M cache
Memory
DDR3L 1333 MHz, SO-DIMM socket x 1, max 8 GB, default 4 GB
Storage device(s)
In Australia standard with 64 GB SSD
Also Available with HDD or larger SSD on request
Display
12.1" LCD Display
Resolution
1024 x 768
Tilt Angle
17 ~ 45°
Touch Panel
True-Flat PCAP touch with 10 point multi-touch support
I/O Ports
3 x RS-232 interfaces; DB9 x2 & RJ-45 x1 with 5V or 12V support on COM1/COM2/COM3
4 x USB Ports: 1 x USB3.0/2.0 & 3 x USB2.0
1 x Parallel Port
1 x VGA Port for 2nd Display with 12V power for Posiflex Monitor
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x 10/100/1000 Ethernet Port
1 x Mini-PCIe Slot
I/O Devices (Intergrated)
80 mm Thermal Printer, 200 mm/sec, with Auto Cutter or
Laser Omni Directional Presentation Scanner
Optional:
MSR 3 tracks ISO or JISII HID/VCOM Selectable
Smartcard Reader
RFID Reader HID/VCOM Selectable
Fingerprint Reader
Mini-PCIe Wifi Module
Audio
Line out Only
OS Support
POSReady 7 / Windows 7 / Windows Embedded 8.1 Industry / WIN 10 IoT / Linux per request
Environmental Sealing
N/A
Operating Environment
SSD: 0 °C ~ 50 °C, 20% ~ 90% Relative Humidity
HDD: 0 °C ~ 40 °C, 20% ~ 90% Relative Humidity
Storage Environment
-20 °C ~ 70 °C, 10% ~ 90% Relative Humidity
Power Supply
External Power Adapter 12V, 100W
External Dimensions (WxDxH)
297mm x 187mm x 402mm
Weight
5.3 Kg
