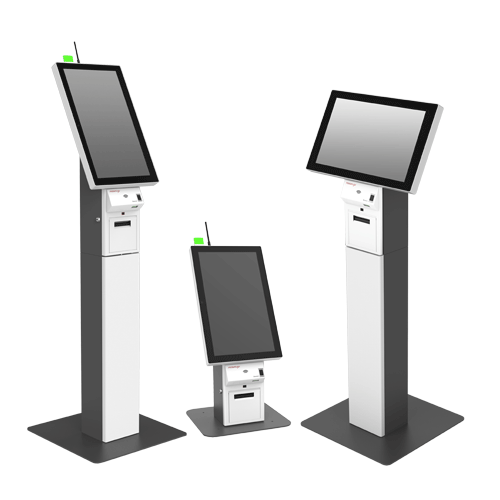

POSIFLEX EK-2110 Mercury Android 21.5" Kiosk Systems Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The Mercury EK-2100 Series is a 21.5" display kiosk with a stylish and functional design that will blend seamlessly in any retail environment. The Mercury EK-2100 Series can serve as an Ordering/Queue Kiosk/Information Kiosk to interact with customers and simultaneously help retailers to drive more demand and business.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Slim design 21.5" Android Kiosk
  • Standard with 3" Printer 200mm/sec
  • Standard with Wide angle Camera & proximity sensor
  • Rockchip RK3399, Dual-core Cortex A72 up to 1.8GHz + Quad-core Cortex A53 up to 1.4GHz
  • Stand alone or countertop
  • Available in Portrait or Landscape
  • Easy Maintenance - all accesable from the front
  • Many options available:
  • Scanner, Fingerprint reader, NFC/RFID reader, 4G Module
  • Status indicator (potrait model only)
NameSizeDownload
Brochure544kb EK-Series_brochure.pdf

Products available to purchase

 SKUVendorName
PFEK2110PW-P2016eCA9 POSIFLEXEK-2110 Android Kiosk 2G 16G Scanner Wifi Ped And9

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Rockchip RK3399, Dual-core Cortex A72 up to 1.8GHz + Quad-core Cortex A53 up to 1.4GHz
Memory
2 GB DDR4, upgradable to 4GB
Storage device(s)
16 GB eMMC + microSD slot x 1, upgradable to 32GB
Display
21.5" TFT LED Backlit LCD Display
Can be ordered in Potrait or Landscape from Factory
Resolution
1920 x 1080
Touch Panel
True-flat PCAP touch with multi-touch support
I/O Ports
2 x RS-232 Ports (2 x 10 pin RJ50) with 5V/12V Support
6 x USB Ports (1 x USB3.0/2.0 5 x USB2.0)
1 x OTG USB Port: Micro USB
1 x HDMI Port
1 x 10/100/1000Mb Ethernet Port
1 x 10/100Mb Ethernet Port
1 x M.2 slot
Audio
Internal 3W speaker x 2
OS Support
Android 9.0
Options
Standard
Pedestal or Countertop (order from Factory)
1MP wide angle Camera
Proximity Sensor 60 to 100 cm
3" Thermal Priner 200 mm/sec
Optional
USB Wifi Dongle
2D Barcode Scanner
Custom Brackets for Payment terminals
Fingerprint reader
NFC Reader (Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols - tag read/write (ISO/IEC-18092)
4G Module (special order)
Environmental Sealing
N/A
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
Internal 1 x 12V/60W and 1 x24V/60W
External Dimensions (WxDxH)
Potrait version:
Countertop 395 x 395 x 774 mm
Floorstanding: 500 x 500 x 1546 mm
Landscape version:
Countertop 540 x 395 x 588 mm
Floorstanding: 540 x 500 x 1362 mm
Weight
Countertop 22.6 Kg
Floorstanding: 34.8 Kg
