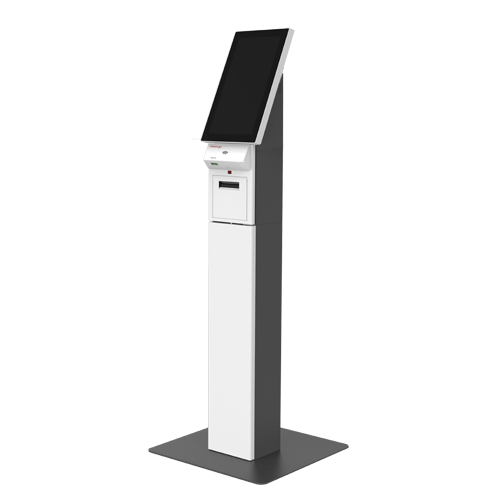

POSIFLEX EK-1630 Mercury 15.6" Kiosk (J1900) Systems Series

(Product may vary from image. Rely only on description for purchasing decisions.)

Mercury EK-1600 SeriesSleek and slim design, the Mercury EK-1600 Series is a 15.6" display kiosk with a compact footprint that is suitable for retail stores. With varieties of self-service transaction peripherals, the Mercury EK-1600 Series serves as an extension of employees. It can handle mundane tasks while allowing the employee to focus on providing better customer service.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Slim design 15.6" Kiosk
  • Standard with 3" Printer 200mm/sec
  • Standard with Wide angle Camera & proximity sensor
  • Intel Bay Trail J1900 Quad Core CPU, up to 2.42 GHz, 2M Cache
  • Stand alone or countertop
  • Available in Portrait or Landscape
  • Easy Maintenance - all accesable from the front
  • Many options available:
  • Scanner, Fingerprint reader, NFC/RFID reader, 4G Module
  • Status indicator (potrait model only)
NameSizeDownload
Brochure544kb EK-Series_brochure.pdf

Products available to purchase

 SKUVendorName
PFEK1630W-P4064SCE POSIFLEXEK-1630 Kiosk J1900 4G 64G Scanner Wifi IoT64C
PFEK1630PW-P4064SCE POSIFLEXEK-1630 Kiosk J1900 4G 64G Scanner wifi Ped IoT64C

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel® Bay Trail Quad Core Celeron™ J1900 / 2.0 GHz ~ 2.42 GHz
Memory
DDR3L 800 MHz, SO-DIMM socket x 1, max 8 GB, default 4 GB
Storage device(s)
In Australia Standard with 64 GB SSD, can be purchased with larger SSD Drives
Display
15.6" TFT LED Backlit LCD Display
Can be ordered in Potrait or Landscape from Factory
Resolution
1920 x 1080
Touch Panel
True-flat PCAP touch with multi-touch support
I/O Ports
6 x RS-232 Ports (3 x DB9, 1 x 10 pin RJ50) with 5V/12V Support
8 x USB Ports (1 x USB3.0/2.0 7 x USB2.0)
1 x HDMI Port
1 x 10/100/1000Mb Ethernet Port
1 x M.2 slot
Audio
Internal 3W speaker x 2
OS Support
Windows 10 IoT/WIN7/POSReady 7/Linux per request
Options
Standard
Pedestal or Countertop (order from Factory)
1MP wide angle Camera
Proximity Sensor 60 to 100 cm
3" Thermal Priner 200 mm/sec
Optional
M.2 Wifi/BT Module
2D Barcode Scanner
Custom Brackets for Payment terminals
Fingerprint reader
NFC Reader (Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols - tag read/write (ISO/IEC-18092)
4G Module (special order)
Environmental Sealing
N/A
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
Internal 1 x 12V/60W and 1 x24V/60W
External Dimensions (WxDxH)
Potrait version:
Countertop 395 x 395 x 646 mm
Floorstanding: 500 x 500 x 1420 mm
Landscape version:
Countertop 395 x 395 x 513 mm
Floorstanding: 500 x 500 x 1268 mm
Weight
Countertop 18.2 Kg
Floorstanding: 30.4 Kg
