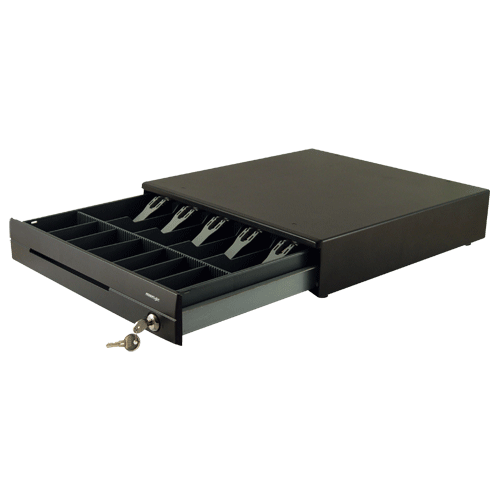

POSIFLEX CR-3100 Cash Drawer Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The Posiflex CR-3100 Series Cash Drawer is a smaller version of the CR- 4100 cash drawer. It is designed with no screws or bolts accessable from the outside. The 3100 has the insert with the plastic note clips. The standard drawer can be used in all normal environments where the solenoid is fired by a POS system or Printer, no matter whether it is 12V or 24V. The Posiflex drawer is designed to work in a voltage range of 10 to 30 Volt.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Basic Cash drawer
  • 3 Position Key Lock
  • Multiple key combinations
  • Screw-less tamper resistance design
  • 5 Note/6 Coin, fixed coin section
  • Plastic Note Clips
  • RJ12 Modular solenoid kick out connector
  • 10~30V Solenoid operation standard, also available with interface solutions (Special order)
  • Available in Black and Ivory (special order)
NameSizeDownload
User Manual for CR3100 & CR3104130kb cr3X00-3X04_um.pdf
User Manual for CR3101, CR3102 & CR3103868kb cr3X01-3X02-3X03_um.pdf
OPOS Driver for .NET1,349kb PF_OPOS.NET_v1.1.3.zip

Products available to purchase

 SKUVendorName
PFCR3100B POSIFLEXCR-3100 Cash Drawer Black
PFCR3115B POSIFLEXCR-3100 Cash drawer with USB Interface Black
PFCR31TRAY POSIFLEXCash Drawer insert for CR3100
PFCR31LID POSIFLEXLockable Lid for CR3100 Cash Drawer insert.
AD12VR15P2.5 GOODSONAdaptor 12V 1.5A 2.5mm Jack C+
DRMNLKICK12 GOODSONManual drawer kick unit 12V~24V

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
C4141C4141 Cash Drawer
EC350EC-350 Cash Drawer
EC410EC-410 Cash Drawer

Parts documents

Parts layout details

Specifications
Construction Material
Steel Drawer
Plastic Coated Steel front
Plastic Note clips
Screw-less tamper resistance design
Opening Rails
Nylon Rollers
Media slots
2 Slots
Lock
3 Position
Multiple Keyed Locks
Coin Departments
6 Fixed
Note Departments
5 Adjustable
Drawer Feedback
Drawer Open Microswitch
Interfaces
(CR3100) Printer or System Driven 10~30V Solenoid with RJ12 Connector
Weight
6.7 Kg
External Dimensions (WxDxH)
400 x 410 x 85 mm
