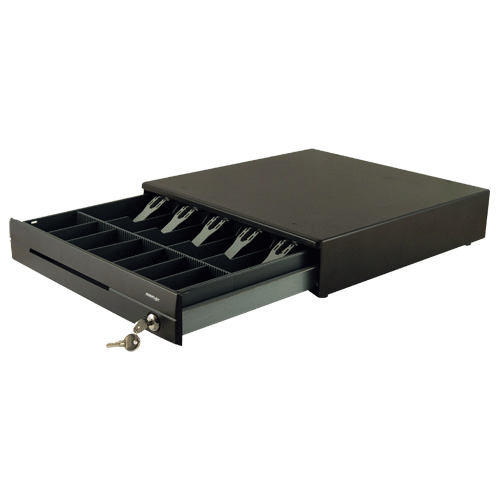

POSIFLEX CR-3100 Cash Drawer Black

(Product may vary from image. Rely only on description for purchasing decisions.)
  • PFCR3100B
  • CR*3100L0GD
  • CR3100
  • Login to view pricing and availability

Posiflex CR-3100 Cash Drawer, Black, 10-30V Solenoid driven, 4 note/6 coin/Media slot. 400(w) x 410(d) x 85(h)

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Basic Cash drawer
  • 3 Position Key Lock
  • Multiple key combinations
  • Screw-less tamper resistance design
  • 5 Note/6 Coin, fixed coin section
  • Plastic Note Clips
  • RJ12 Modular solenoid kick out connector
  • 10~30V Solenoid operation standard, also available with interface solutions (Special order)
  • Available in Black and Ivory (special order)
User Manual for CR3100 & CR3104130kb cr3X00-3X04_um.pdf
Exploded Parts View34kb CR3100_Parts_layout.pdf
User Manual for CR3101, CR3102 & CR3103868kb cr3X01-3X02-3X03_um.pdf
Parts List66kb CR3100_Partslist_Diagrams.pdf
OPOS Driver for .NET1,349kb PF_OPOS.NET_v1.1.3.zip

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

C4141C4141 Cash Drawer
EC350EC-350 Cash Drawer
EC410EC-410 Cash Drawer

Parts documents

Parts layout details

Construction Material
Steel Drawer
Plastic Coated Steel front
Plastic Note clips
Screw-less tamper resistance design
Opening Rails
Nylon Rollers
Media slots
2 Slots
3 Position
Multiple Keyed Locks
Coin Departments
6 Fixed
Note Departments
5 Adjustable
Drawer Feedback
Drawer Open Microswitch
(CR3100) Printer or System Driven 10~30V Solenoid with RJ12 Connector
6.7 Kg
External Dimensions (WxDxH)
400 x 410 x 85 mm
