POSIFLEX CR-2200 Cash Drawer Series

(Product may vary from image. Rely only on description for purchasing decisions.)

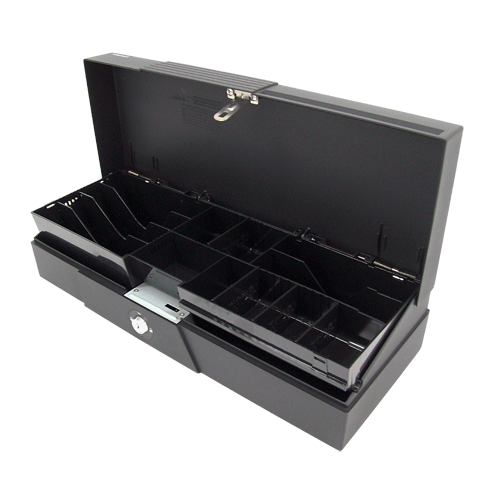

The 2210 series is a flip-top type cash drawer. The CR-2210 series has a Aluminium die-cast base and wear-proof Aluminium die-cast top. This CR-2210 series provides 8 coin and 6 bill compartments. Has RJ12 connector, so cables can be made to length as required.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Heavy Duty Cast Aluminium Construction
  • 3 Position Key Lock
  • Space Saving Concept
  • 1 Media Slots
  • 6 Note/8 Coin
  • Vertical Note Holders
  • Lockable Lid Included
  • RJ12 Modular solenoid kick out connector or Interface versions available
  • 10~30V Solenoid standard
  • 460mm (W) x 175mm (D) x 102mm (H)
NameSizeDownload
No Downloads

Products available to purchase

 SKUVendorName
PFCR2210B POSIFLEXCR-2210 Black Fliptop Cash Drawer
PFCR2225B POSIFLEXCR-2225 Black USB Fliptop Drawer

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Construction Material
Heavy Duty Cast Aluminium Drawer
Euro Style upright Note Holders
Opening Rails
N/A Flip top Drawer
Media slots
1 Slot
Lock
3 Position
Coin Departments
8 Fixed
Note Departments
6 Fixed
Drawer Feedback
Drawer Open Microswitch
Interfaces
(CR2210) Printer or System Driven 10~30V Solenoid with RJ12 Connector
(CR2225) USB Trigger Interface
Weight
4.3 Kg
External Dimensions (WxDxH)
460 x 175 x102 mm
