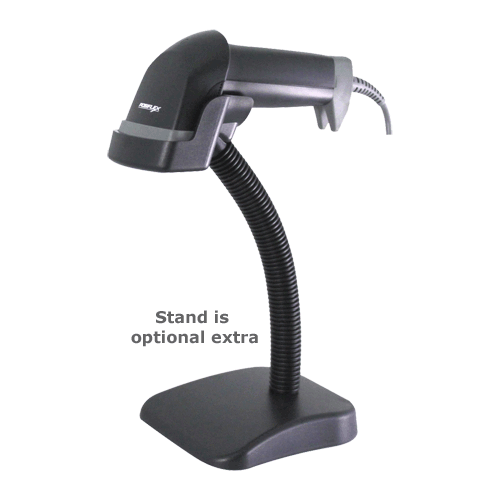

POSIFLEX CD-3200 2D Handheld Imager Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

The Posiflex CD-3200 offers 2D Imaging capability. Fast scanning rate up to 60 frames per second, it satisfies a retailer’s busy checkout needs. With large trigger button and ergonomic design.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Handy 2D image scanner
  • Light source: 2 x red LED
  • Scan Method: CMOS array sensor
  • Resolution: 752 (H) x 480 (V) pixels
  • Depth of Field: 40~120 mm (15 mils QR code)
  • Scan Angle: Horizontal - 41°, Vertical - 26°
  • Scan Rate: Up to 60 fps
  • Scans most common 1D, 2D and Postal Codes
  • USB or Serial Interface
User Manual8,018kb ume_cd3200.pdf

Products available to purchase

PFCD3200B-U POSIFLEXCD-3200 2D Imager Scanner USB Black
PFST8000B POSIFLEXHandsfree Stand for the CD-3200 Black

All Vendor Sku's for this Products

This product is equivalent to the following products

No Products to Display

Parts documents

Parts layout details

Scan Engine
CMOS array sensor
Light Source
2 x Visible Red LED
Scan Pattern
Resolution: 752 (H) x 480 (V) pixels
Scan Rate
Up to 60 f/sec
Contrast Ratio
Typical 5mils
Depth of field
40~120 mm (15 mils QR code)
Symbologies supported
1D Barcode Support: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBNISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
2D Barcode Support: Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF41, QR & Micro-QR Code, PDF417
Postal Code Support: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code
Programming Method
Bar code command
LED indication
Programmable Beeper
Communication Type
USB HID, USB Virtual COM, RS232
Supply Voltage
DC +5V ±10%
Power Consumption
Drop Specification
Withstands multiple drops from 1.5m onto concrete
Environmental Sealing
Operating Environment
Storage Environment
EMC/Safety Standards
CE, FCC DOC Compliance
External Dimensions (WxDxH)
64 x 76 x 170 mm
190 g (cable not included)
