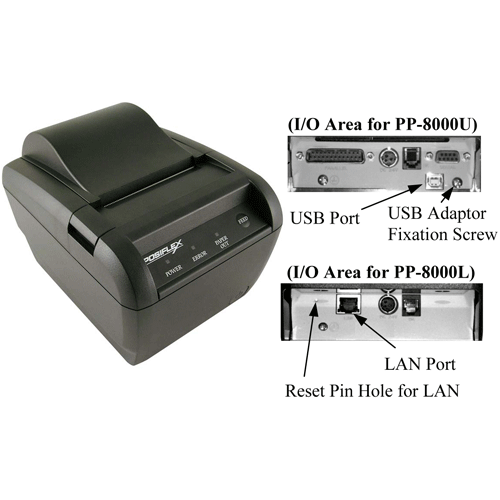

POSIFLEX AURA 8803 USB Ethernet RS232 interface Thermal Printer

(Product may vary from image. Rely only on description for purchasing decisions.)
  • PFPP8803UERB
  • PP8803004000
  • POSIFLEX
  • AURA8803
    • Login to view pricing and availability

High speed 3" thermal printer with auto cutter, Unicode support, black, 220mm/sec max, USB + Serial + LAN 3-in-1 interface, with 3ft USB cable and power adaptor

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • POS Thermal Receipt Printer
  • 3" high-speed thermal printer with auto and additional manual cutters
  • Standard with USB, RS232 & Ethernet Interface
  • External cover for spill-resistant design (Optional)
  • Printing speed up to 220 mm per second in low-noise printing
  • High-resolution print up to 8 dots / mm and 576 dots / line
  • 80 or 58 mm paper width support
  • QR code printing support
  • User-friendly WiFi support without cable for easy setup
  • Compact size and light weight for easy placement
  • Desktop or wall-mount solution for flexible deployment
  • Drop-and-load structure for easy paper loading
  • Control over 2 cash drawers through 1 port
  • Enhanced capability in kitchen bell for reminder function
NameSizeDownload
Brochure836kb pp8803_brochure.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Line Thermal Dot Printing
Printing Width
64 mm (512 dots/line)/72 mm (576 dots/line)
Dot Pitch
8 x 8 dots/mm (203 dpi)
Printing Speed (Max.)
Max. 220 mm/Sec
Number of Columns
Character Size
Character Table
15 international character sets (Denmark I, Denmark II, Ex-Jugoslavia, France, Germany, Italy, Japan, Korea, Latin America, Norway, Spain, Spain II, Sweden, UK, USA)
23 Code Pages
Bar-code Type
UPC-A/E, EAN13/8, ITF, CODE39/93/128, CODABAR, QR Code, PDF417
Line Spacing
Paper feed method
Friction Feed
Paper Type
Thermal Paper Roll
Paper Width
80 ± 0.5mm or 58 +0/-1mm
Paper Roll Diameter
Max Ø 83.0mm
Paper Thickness
Paper Supply Method
Easy Paper Loading, Drop in loading
Auto Cutter
Guillotine, Partial cut or Full cut
Manual Cutter
Indicators/Controls
LED; Power: green, Error: Red, Paper out: Red
Emulation
ESC/POS
Input Buffer
6 KB
NV Memory
Sensors
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port
N/A
Interfaces
USB (True USB / Virtual COM selectable)
RS232
Ethernet
Driver available
Windows Drivers
Software Utilities
Power Supply
External Power Adaptor Input 100~240 AC Output 24V DC 60W
Power Consumption
Max. 60W
External Dimensions (WxDxH)
148 x 205 x 143mm
Weight
approx. 1.2Kg
Operating Environment
5-40°C, 10-90% RH
Storage Environment
Reliability
EMC/Safety Standards
C-Tick, FCC Class A, RoHS, CE
