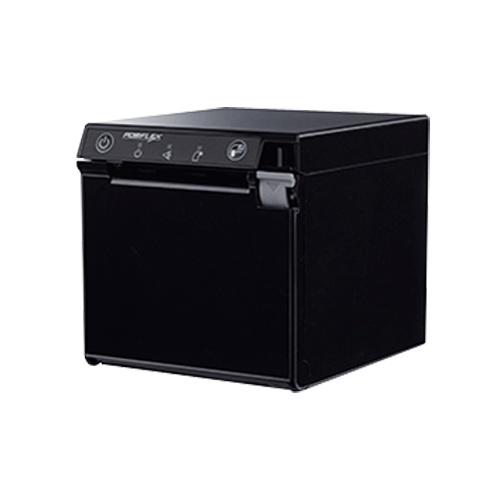

POSIFLEX AURA 7600 USB RS232 interface Thermal Printer

(Product may vary from image. Rely only on description for purchasing decisions.)
  • PFPP7600URB
  • Aura-7600-B
  • POSIFLEX
  • AURA7600
    • Login to view pricing and availability

High speed 3" thermal printer with auto cutter, rectangular shape,shining black, 200mm/sec, USB+Serial interface. USB Cable Included

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • 3" thermal printer with auto cutter
  • Printing speed up to 200 mm/sec max.
  • High-resolution printing up to 8 dots/mm and 576 dots/line
  • 80 mm or 58 mm paper width support
  • QR code and PDF417 printing support
  • Front paper loading and paper out for flexible deployment
  • Drop-and-load action for easy paper roll replacement
  • Dimension: 129.00 mm x 129.50 mm x 148.80 mm (W x H x D)
  • Interface : USB (True USB & Virtual COM selectable) + Serial, optional, LAN or Wireless interface module
NameSizeDownload
Brochure209kb pfpp7600_brochure.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
PP6900AURA PP-6900

Parts documents

Parts layout details

Specifications
Printing Method
Line Thermal Dot Printing
Printing Width
Dot Pitch
8 x 8 dots/mm (203 dpi)
Printing Speed (Max.)
Max. 200 mm/Sec
Number of Columns
Character Size
Character Table
15 international character sets (Denmark I, Denmark II, Ex-Jugoslavia, France, Germany, Italy, Japan, Korea, Latin America, Norway, Spain, Spain II, Sweden, UK, USA)
23 Code Pages
Bar-code Type
UPC-A/E, EAN13/8, ITF, CODE39/93/128, CODABAR, QR Code, PDF417
Line Spacing
Paper feed method
Friction Feed
Paper Type
Thermal Paper Roll
Paper Width
80 ± 0.5mm or 58 ± 1mm
Paper Roll Diameter
Max Ø 83.0mm
Paper Thickness
Paper Supply Method
Easy Paper Loading, Drop in loading
Auto Cutter
Guillotine, Partial cut or Full cut
Indicators/Controls
LED; Power; Error; Paper out
Emulation
ESC/POS
Input Buffer
6 KB
NV Memory
Sensors
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port
N/A
Interfaces
USB Standard (True USB & Virtual COM Selectable) & RS-232
Driver available
Windows 2000/NT/XP/VISTA/7
Software Utilities
Power Supply
External Power Adaptor Input 100~240 AC Output 24V DC
Power Consumption
Max. 60W
External Dimensions (WxDxH)
129 x 148.8 x 129.5
Weight
approx. 1.0Kg
Operating Environment
5-40°C, 10-90% RH
Storage Environment
Reliability
EMC/Safety Standards
C-Tick, FCC Class A, RoHS, CE
