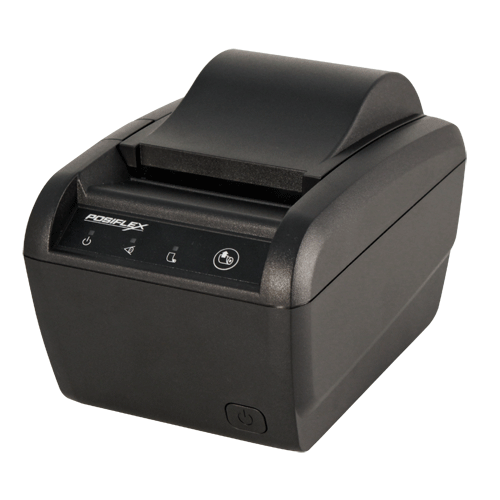

POSIFLEX AURA 6900 POS Thermal Receipt Printer Series **Obsolete**

(Product may vary from image. Rely only on description for purchasing decisions.)

The Posiflex AURA-6900 is a high performance but economic model featuring excellent reliability and easy operation. With printing speed up to 200 mm / sec, easy paper replacement and less paper jams, it can satisfy crowded check-out line and promotional activities in the peak hours. Additionally, the AURA-6900 features flexible deployment in the wall-mount design for better space arrangement.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • POS Thermal Receipt Printer
  • High Speed printing at 200 mm/sec
  • Windows and OPOS drivers available
  • High Resolution 8 dots/mm
  • Low noise thermal printing
  • Drop-and-load paper loading
  • Available standard with USB Interface (optional RS232, Parallel or Ethernet)
  • Supports optional kitchen bell/buzzer
NameSizeDownload
Brochure219kb aura6900_brochure.pdf
User Manual1,067kb pp6900_ume.pdf
Printer Driver for WinXP-WIN7-WIN8 32Bit1,660kb PF_PPdrv_x32_305c.rar
Printer Driver for WinXP-WIN7-WIN8 64Bit302kb PF_PPdrv_x64_105d.rar

Products available to purchase

 SKUVendorName
PFPM900E POSIFLEXEthernet interface Card for Posiflex PP6900 8800 9000
PFPM900P POSIFLEXParallel interface Card for PP6900 8800 9000
PFKZ200 POSIFLEXPosiflex External Kitchen Printer Buzzer RJ12
AD-PF24VR60W3P POSIFLEXPower Adapter 24V 60W
PFPM900R POSIFLEXRS232 interface Card for PP6900 8800 9000 with Cable
PFPM900W POSIFLEXWifi interface Card for Posiflex PP6900 8800 9000

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Line Thermal Dot Printing
Printing Width
Dot Pitch
8 x 8 dots/mm (203 dpi)
Printing Speed (Max.)
Max. 200 mm/Sec
Number of Columns
Character Size
Character Table
15 international character sets (Denmark I, Denmark II, Ex-Jugoslavia, France, Germany, Italy, Japan, Korea, Latin America, Norway, Spain, Spain II, Sweden, UK, USA)
23 Code Pages
Bar-code Type
UPC-A/E, EAN13/8, ITF, CODE39/93/128, CODABAR, QR Code, PDF417
Line Spacing
Paper feed method
Friction Feed
Paper Type
Thermal Paper Roll
Paper Width
80 ± 0.5mm or 58 ± 1mm
Paper Roll Diameter
Max Ø 83.0mm
Paper Thickness
Paper Supply Method
Easy Paper Loading, Drop in loading
Auto Cutter
Guillotine, Partial cut or Full cut
Indicators/Controls
LED; Power: green, Error: Red, Paper out: Red
Emulation
ESC/POS
Input Buffer
6 KB
NV Memory
Sensors
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port
N/A
Interfaces
USB Standard (True USB & Virtual COM Selectable)
Optional: RS232, Parallel, Ethernet & Wifi
Driver available
Windows 2000/NT/XP/VISTA/7
Software Utilities
Power Supply
External Power Adaptor Input 100~240 AC Output 24V DC
Power Consumption
Max. 50W
External Dimensions (WxDxH)
148 x 205 x 143mm
Weight
approx. 1.2Kg
Operating Environment
5-40°C, 10-90% RH
Storage Environment
Reliability
EMC/Safety Standards
C-Tick, FCC Class A, RoHS, CE
