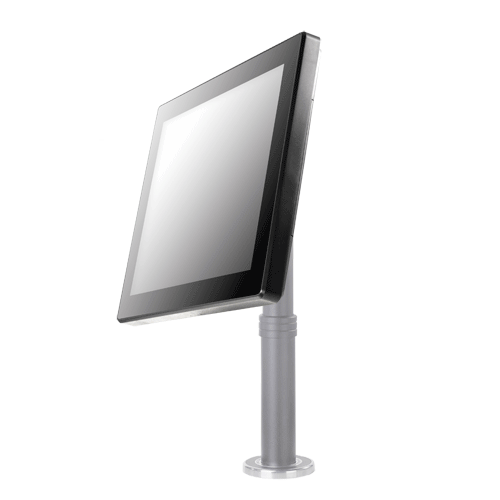

POSIFLEX 15" LCD Bezel Free Monitor Black no Stand

(Product may vary from image. Rely only on description for purchasing decisions.)
  • PFLM3115NBF
  • LM3115A040MW
  • POSIFLEX
  • LM3115BF
    • Login to view pricing and availability

Posiflex 15" LCD Bezel Free VGA Monitor Black no Stand for VESA Pole Mounting

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Slim bezel-free design
  • Versitile GEN7 Base
  • 15” TFT LCD panel
  • LCD resolution up to 1024 x 768
  • Optional side attachment support for LM-3115 (SL-105)
  • VESA mounting support
  • Dimension : 300 mm (H) x 372 mm (W) x 258 mm (D);
  • Weight : 4.71 kg
  • Colour : black or white(special order)
NameSizeDownload
User Manual543kb lm_tm30xx_31xx_um_web.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Display
15" TFT LED Backlit LCD Display
Resolution
1024 x 768
Viewing Area
304.128mm (H) x 228.096mm (V)
Contrast Ratio
600:1
Brightness
250 cd/m2
Response time
3 ms (Raising) / 5 ms (Falling)
View Angle
80/80/80/80 degree (U/D/L/R)
Tilt Angle
15° to 90°
Touch Panel
N/A
I/O Ports
Pass through USB port for Optional MSR/RFID Attachments
Input Signal
VGA
Audio
N/A
OS Support
Windows XP Pro / POSReady 2009 / Windows 7 / POSReady 7 / WIN8.1 Embedded Retail Industry / Linux per request
Environmental Sealing
N/A
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (50W)
External Dimensions (WxDxH)
372mm x 300mm x 258mm
Weight
4.71 Kg
EMC/Safety Standards
C-Tick, CE
