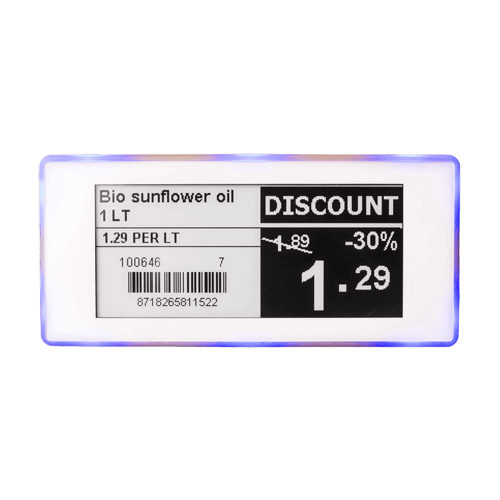

OPTICON PE-292 2.9" E-Paper Electronic Shelving Display with NFC and LED's

(Product may vary from image. Rely only on description for purchasing decisions.)

What diversifies the PE-292 from our traditional ESL solution, is the added value of NFC, LED indicators, and sound feedback. This enables you to use customer loyalty cards, payment, and even pick-to-display solutions. The LED can be used as an indicator for a certain action, to attract attention or to find a product in a warehouse.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Compact high-resolution display
  • Extremely low power consumption
  • Active NFC reader
  • RGB LED
  • Sound feedback
  • Externally powered via a rail system
NameSizeDownload
Brochure139kb PE-292_brochure.pdf
Catalog642kb PE_Range_ESL_catalog.pdf
Brochure110kb EBS40_Brochure.pdf

Products available to purchase

 SKUVendorName
OPPE292 OPTICON2.9" E-paper ESL Black White 296x128 with NFC
OPPOWR-BRIDGE OPTICONBridge Unit PowerRail
OPPOWR-CAB650 OPTICONConnector Cable for OPPOWR-PLUGRM 650mm
OPEBS40 OPTICONEBS-40 ESL RF Base Station
OPPOWR-ENDCAP OPTICONEnd Cap for PowerRail
OPPOWR-PLUGLF OPTICONPlug for PowerRail Left Female 650mm
OPPOWR-PLUGRM OPTICONPlug for PowerRail Right Male 150mm
AD-OP6VR20 OPTICONPower Supply 6V 2A (1.7x4x9.5)
AD-OP12VR8 OPTICONPower Supply for Bank End Power Rail 12V 8A
OPPOWR-BKIT OPTICONPowerRail Back end Kit
OPPOWRAIL-T1GY OPTICONPowerRail for PE ESL Devices 1m Grey with Adh Tape

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
CC2530-F128, 8051 core 8-bit MCU
Clock Speed 32MHz
Memory
Internal ROM: 128Kb
Internal RAM: 8Kb
Audio
Buzzer: programmable frequency and volume
Display
2.9" Black & White e-Paper 296 x 128 dots (WxH)
Active Area: 66.9 x 29.06 mm (WxH)
Contrast Ratio 8:1
Pixel Pitch: 112 dpi
RGB LED's surround (10)
I/O Devices (Intergrated)
NFC
Frequency: 13.56MHz
Protocols: ISO/IEC 14443A/MIFARE/NTAG
Communication Type
Wireless IEEE 802.15.4
Communication Technology
IEEE 802.15.4
2.4GHz (2405-2480 MHz)
Range Typical 25 m indoor
Speed: up to 250kbps
Number of EE-292 per base station: Max. 2500
Power Supply
Dedicated power rail, 5~12V
Power Consumption
0.68W per ESL (max.)
Environmental Sealing
IP54
Operating Environment
0 ~ 40°C
RH 20-85% non condensing
Storage Environment
-20 ~ 60°C
RH 20-85% non condensing
EMC/Safety Standards
FCC, RoHS, EN 60950-1, IEC60950-1, EN55022, EN55024, WEEE
External Dimensions (WxDxH)
92.3 x 42.2 x 11.3 mm
Mounted on a dedicated power rail: 12.1 mm thickness
Weight
Approx. 28.6g
