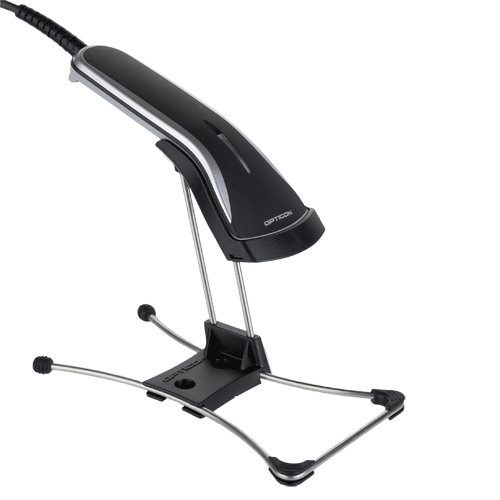

OPTICON OPR2001 Laser Scn Stand Black RS232

(Product may vary from image. Rely only on description for purchasing decisions.)
  • OPR2001BKIT-RPE
  • 11646
  • OPTICON
  • OPR2001
    • Login to view pricing and availability

Opticon OPR2001 Laser Scanner with RS232 Cable and Stand Black.Power Supply is optional item

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Handheld Laser Scanner w/Stand
  • Small form factor
  • 100 scans/second
  • The integrated auto trigger mode together with the dedicated stand enables hands-free operation
  • Ultra-lightweight, yet solid scanner withstands drops up to 1.5 meter onto concrete.
  • Available in black and white
  • Available in USB, RS232 and Keyboard Wedge interface
NameSizeDownload
Brochure123kb opr2001_brochure.pdf
Setup Guide229kb op_basic_setup_guide.zip
Barcode Reference Manual554kb op_barcode_ref_manual.zip
USB Drivers Installer2,398kb OPT_USB Drivers Installer.exe

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
MS5145MS5145 Eclipse™ Laser Scanner
MS9520MS-9520/9540 Voyager® Handheld Laser Scanner

Parts documents

Parts layout details

Specifications
Light Source
650 nm visible laser diode
Depth of field
40 - 500 mm (res. 1.0 mm / 39 mil),
20 - 350 mm (res. 0.5 mm / 20 mil)
20 - 200 mm (res. 0.25 mm / 10 mil)
20 - 100 mm (res. 0.15 mm / 6 mil)
30 - 70 mm (res. 0.127 mm / 5 mil)
at PCS 0.9, Code 39
Scan Rate
100 Scans/sec
Resolution
0.127 mm / 5 mil
Pitch Angle
-35 to 0°, 0 to +35°
Tilt Angle
-20 to 0°, 0 to +20°
Skew Angle
-50 to -8°, +8 to +50°
Indicators
1 LED (red/green/orange)
Interfaces
RS232 - DB9 PTF connector with external power supply
Keyboard Wedge - MiniDIN6 F/M connector
USB - Ver. 1.1, HID/VCP, USB-A connector
Symbologies supported
JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Drop Specification
1.5 m / 5 ft drop onto concrete surface
Vibration Test
10 - 100 Hz with 2G for 1 hour
Environmental Sealing
IP42
Supply Voltage
5 V ± 10 % (Keyboard Wedge and USB), 6 V (min. 4.5, max. 6.5 V) (RS232)
Power Consumption
Max. 150 mA
Operating Environment
-5 to 50 °C
RH 20 - 85 % (non-condensing)
Storage Environment
-20 to 60 °C
RH 10 - 90 % (non-condensing)
External Dimensions (WxDxH)
Scanner 56 x 151 x 31 mm
Stand 100 x 175 x 127 mm
Weight
Scanner 60 g (excl. Cable)
Stand 115 g
Product Compliance
CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II
