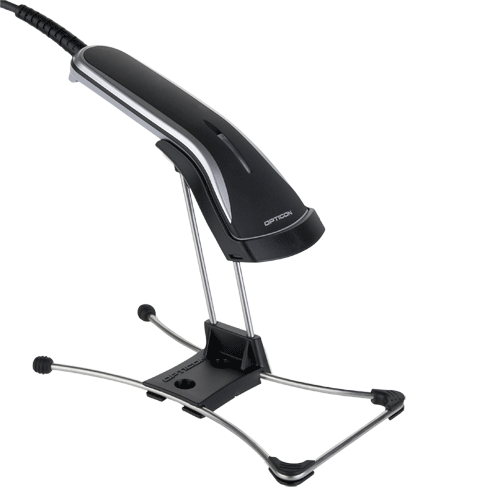

OPTICON OPR-2001 Handheld Laser Barcode Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

This sleek barcode reader from Opticon features a compact and stylish yet lightweight design. The OPR2001's uniquely ergonomic design and comfortable housing not only makes it a natural fit to your hand, but also gives it a comfortable feel.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Handheld Laser Scanner w/Stand
  • Small form factor
  • 100 scans/second
  • The integrated auto trigger mode together with the dedicated stand enables hands-free operation
  • Ultra-lightweight, yet solid scanner withstands drops up to 1.5 meter onto concrete.
  • Available in black and white
  • Available in USB, RS232 and Keyboard Wedge interface
NameSizeDownload
Brochure123kb opr2001_brochure.pdf
Setup Guide229kb op_basic_setup_guide.zip
Barcode Reference Manual554kb op_barcode_ref_manual.zip
USB Drivers Installer2,398kb OPT_USB Drivers Installer.exe

Products available to purchase

 SKUVendorName
OPR2001BKIT-RPE OPTICONOPR2001 Laser Scn Stand Black RS232

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
MS5145MS5145 Eclipse™ Laser Scanner
MS9520MS-9520/9540 Voyager® Handheld Laser Scanner

Parts documents

Parts layout details

Specifications
Light Source
650 nm visible laser diode
Depth of field
40 - 500 mm (res. 1.0 mm / 39 mil),
20 - 350 mm (res. 0.5 mm / 20 mil)
20 - 200 mm (res. 0.25 mm / 10 mil)
20 - 100 mm (res. 0.15 mm / 6 mil)
30 - 70 mm (res. 0.127 mm / 5 mil)
at PCS 0.9, Code 39
Scan Rate
100 Scans/sec
Resolution
0.127 mm / 5 mil
Pitch Angle
-35 to 0°, 0 to +35°
Tilt Angle
-20 to 0°, 0 to +20°
Skew Angle
-50 to -8°, +8 to +50°
Indicators
1 LED (red/green/orange)
Interfaces
RS232 - DB9 PTF connector with external power supply
Keyboard Wedge - MiniDIN6 F/M connector
USB - Ver. 1.1, HID/VCP, USB-A connector
Symbologies supported
JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Drop Specification
1.5 m / 5 ft drop onto concrete surface
Vibration Test
10 - 100 Hz with 2G for 1 hour
Environmental Sealing
IP42
Supply Voltage
5 V ± 10 % (Keyboard Wedge and USB), 6 V (min. 4.5, max. 6.5 V) (RS232)
Power Consumption
Max. 150 mA
Operating Environment
-5 to 50 °C
RH 20 - 85 % (non-condensing)
Storage Environment
-20 to 60 °C
RH 10 - 90 % (non-condensing)
External Dimensions (WxDxH)
Scanner 56 x 151 x 31 mm
Stand 100 x 175 x 127 mm
Weight
Scanner 60 g (excl. Cable)
Stand 115 g
Product Compliance
CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II
