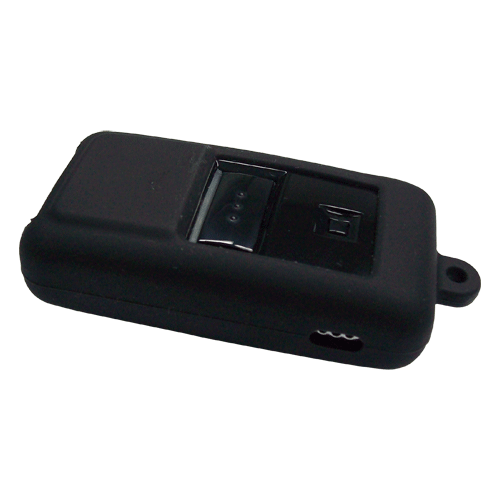

OPTICON OPN2001 Pocket Memory Scanner with Rubber boot

(Product may vary from image. Rely only on description for purchasing decisions.)
  • OPN2001BKIT-U
  • OPN2001BKIT-U
  • OPN2001
  • Login to view pricing and availability

OPN2001 Pocket memory Scanner /w Rubber boot1 x OPN2001B-U1 x OPN2001RBOOT

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • This small and lightweight device is equipped with a memory that can store more than 15.000 barcodes.
  • With a weight less than 30 grams, it can be put in every pocket and taken everywhere.
  • Using the OPN2001 is straightforward. No special training is needed as users only need to press a trigger key to operate and a reset key to control mistakes.
  • With the USB cable it is possible to send scanned data to a computer.
  • The battery can also be charged using this cable.
Brochure205kb opn2001_brochure.pdf
User Manual171kb opn2001_ume.zip
Device User Parameter Guide54kb opn2001_dup.zip
USB Drivers Installer2,398kb OPT_USB Drivers Installer.exe

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

No Products to Display

Parts documents

Parts layout details

ARM7 32-bit
Development Environment
4 applications available (also programmable in C-language.
Free software development kit with free RX compiler)
Operating Platform
Real-Time Clock
Quartz RTC for timestamp
Flash ROM: 512KB
RAM: 96 KB
External (user) FlashROM: 1 MB
Memory Expansion
Scan Engine
Laser scan Engine, 650nM visible Laser Diode
Scan Rate: 100 scan/sec
Bar-code Type
1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey, S-Code
Postal Codes: Chinese Post, Korean Postal Authority Code
2D: GS1 stacked
2 keys total: 1 function key, 1 scan key
I/O Ports
Build in Mini USB port ver.1.1 USB-VCP (Special order USB-HID or USB-MSD)
Radio Options
Rechargeable battery: Lithium-Ion Polymer 3.7V 240mAh
Charging through USB Cable
Battery Life
Batch: 4500 Scans (1 Scan/5 sec)
Bluetooth: 3500 Scans (1 Scan/5 sec)
Environmental Sealing
Mechanical Shock
Withstands drops from 1.5 m onto concrete with Rubber case
ESD Protection
External Dimensions (WxDxH)
32 x 62 x16 mm
29g with Battery
Operating Environment
0 ~ 40°C
RH 20 ~ 85% non condensing
Storage Environment
-20 ~ 60°C
RH 20 ~ 85% non condensing
Product Compliance
C-Tick, CE, FCC, VCCI, RoHS, JIS-C-6802, IEC 60825-1 Class 2, FDA CDRH Class II
