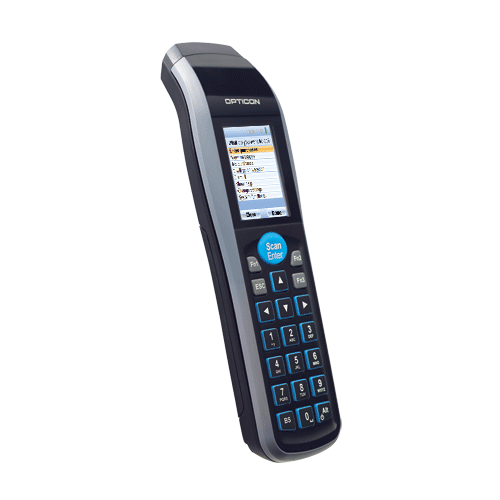

OPTICON OPH-3001 Data Collection Terminal ***Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

The OPH-3001 is a new handheld terminal with an integrated barcode laser scanner. The OPH-3001 is equipped with a clear and easily readable graphic TFT LCD color display which enables the user to use the terminal in combination with advanced application programs.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Data Collection Terminal
  • Laser barcode scanner – 100 scans/second
  • Memory - 4MB flashROM, 4MB SDRAM, 128MB NAND FLASH
  • Programmable - free Opticon SDK enables solution providers to create customized scanning solutions
  • Compact size and weight – 58 mm W x 180 mm L x 23 mm D and 156 grams
  • Offers graphical colour LCD with adjustable backlight
  • Withstands drop of 1.5 meters to concrete
  • Features rugged IP54 rating– comprehensive sealing against dust and moisture
  • Delivers elegant design with soft grip for user comfort
NameSizeDownload
Brochure72kb oph3001_brochure.pdf
USB Drivers Installer2,398kb OPT_USB Drivers Installer.exe

Products available to purchase

 SKUVendorName
OPH13RBATT OPTICONRechargable Battery for OPH1004 1005 H3000

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
RX62N 32-bit MCU
Operating Platform
Programmable in C-language. Software development kit with compiler free downloadable

RTC:Supports year, month, day, hour, minute, second (leap year supported)
Development Environment
Software Utilities
Memory
4 MB SDRAM: 4 MB NAND FLASH: 128 MB
Memory Expansion
Scan Options
LASER

LIGHT SOURCE: 650 nm visible laser diode SCAN RATE: 100 scans/sec READING PITCH ANGLE: -25 to 0°, 0 to +25°

READING SKEW ANGLE: -40 to -8°, +8 to +40° READING TILT ANGLE: -20° to 0°, 0 to +20°

CURVATURE:R>15 mm (EAN8), R>20 mm (EAN13) Min. resolution at PCS 0.9: 0.15 mm / 6
mil

DEPTH OF FIELD: At PCS 0.9, 80 - 300 mm / 3.15 - 11.81 in (1.0 mm / 39 mil), 60 - 250 mm / 2.36 - 9.84 in (0.5 mm / 20 mil), 60 - 200 mm / 2.36 - 7.87 in (0.25 mm / 10 mil), 60 - 130 mm / 2.36 - 5.12 in (0.15 mm / 6 mil), 60 - 110 mm / 2.36 - 4.33 in (0.127 mm / 5 mil)
Symbologies supported
JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/
Plessey-UK/Plessey, S-Code, Telepen, Tri-Optic POSTAL CODE: Chinese Post, Korean Postal Authority code 2D code: Composite codes, MicroPDF417, PDF417
Keyboards
22 keys total, 12 key (alpha)numeric keypad, 4 navigation keys, 3 function keys, 1 control key, 1 power key, 1 scan key
Audio
Display
TFT LCD QVGA color display with backlight SIZE: 2”, 320 x 240 pixels
FONT SIZE: 6x6 / 6x12 / 8x8 / 8x16 / 12x24 dots
Camera
N/A
I/O Ports
Radio Options
IRDA: Ver. 1.2, baudrate 1200 bps - 115.2 kbps
Battery
Lithium-Ion 3.7V 1100mAh
BACKUP BATTERY: Lithium (CR2032)
Battery Life
a. 40 hours (backlight off, 1 scan / 10
sec)
Drop Specification
1.5 m / 5 ft drop onto concrete surface
Environmental Sealing
IP54
ESD Protection
Operating Environment
-10 ~ 50°C
Storage Environment
-20 ~ 60°C
EMC/Safety Standards
External Dimensions (WxDxH)
58.2 x 180.8 x 23.8 mm
Weight
156g
