OPTICON OPH-1005 Batch Data Collection Terminal

(Product may vary from image. Rely only on description for purchasing decisions.)

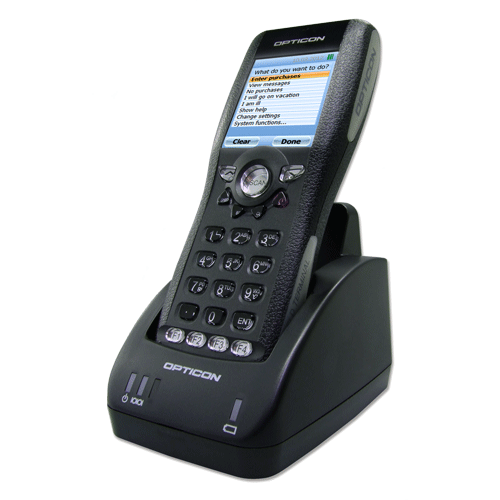

The OPH1005 is an elegant yet reliable portable terminal. It is equipped with 128 MB memory for data collection and the Lithium-Ion rechargeable battery allows a minimum of 40 hours of scanning operation. The ergonomic design provides the user comfort and a soft grip. This device passed drop tests from a height of 1.5 meters, and is sealed to IP 54 standards. The small size and stylish design is combined with a wonderfully straightforward and clear user interface. Physically, the OPH1005 weighs only 140 grams and is approximately the size of a mobile phone. Communication: The terminal transmits data via IrDA (batch method), through the designated cradle acting as both a charging and communication device.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Portable laser barcode scanner – 100 scans/second
  • Memory - Nand flash: 128 MB flashROM: 4 MB Ram: 4 MB SRam
  • Programmable - free Opticon SDK enables solution providers to create customized scanning solutions
  • Compact size and weight – 55 mm W x 136 mm L x 23 mm D and 140 grams.
  • Batch scanner - stores data for later transfer via IrDA through a charging cradle (sold separately)
  • Offers graphical color LCD with adjustable backlight
  • Withstands drop of 1.5 meters to concrete
  • Features rugged IP54 rating – comprehensive sealing against dust and moisture
  • Delivers elegant design with soft grip for user comfort
  • Two-year warranty
NameSizeDownload
Brochure154kb oph1005_brochure.pdf
Quick Setup Guide4,607kb oph1005_qsg.zip
USB Drivers Installer2,398kb OPT_USB Drivers Installer.exe

Products available to purchase

 SKUVendorName
OPH1005 OPTICONOPH-1005 Colour Batch Terminal with Battery
AD-OP6VR20 OPTICON6V 2500 mA with 1.7 x 4x 9.5 tip C+
OPH13RBATT OPTICONRechargable Battery for OPH1004 1005 H3000

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
RX62N 32-bit MCU
Development Environment
Programmable in C-language. Software development kit with compiler free downloadable
Operating Platform
Proprietory
Real-Time Clock
Supports year, month, day, hour, minute, second (leap year supported)
Memory
NAND Flash: 128 MB
Flash ROM: 4 MB
SRAM: 4 MB
Memory Expansion
N/A
Scan Engine
Laser scan Engine, 650nM visible Laser Diode
Scan Rate: 100 scan/sec
Mininimum PCS Value: 0.45
Depth of Field: 5 to 45 cm, depending on bar code density
Bar-code Type
Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal code: Chinese Post, Korean Postal Authority code
2D code: Composite Codes, MicroPDF417, PDF417
Keyboards
23 keys total, 12 keys alpha-numeric keypad, 2 navigation keys, 4 function keys, 3 control keys, 1 power key, 2 hot keys, 1 scan key
Audio
Buzzer
Display
TFT LCD QVGA color display with backlight
SIZE: 2”, 320 x 240 pixels
FONTSIZE: 6x6 / 6x12 / 8x8 / 8x16 / 12x24 dots
Camera
N/A
I/O Ports
IRDA in Cradle
Radio Options
IrDA: ver. 1.2, Baudrate 1200 bps - 115.2 kbps, FiR Ready
Battery
Rechargeable battery: Lithium-Ion Polymer 3.7V 1100mAh
backup battery: Lithium (CR2032)
Battery Life
Ca. 40 hours (1 scan/10 sec)
Environmental Sealing
IP54
Mechanical Shock
Withstands drops from 1.5 m onto concrete
ESD Protection
External Dimensions (WxDxH)
136 x 55 x 23 mm
Weight
140g with Battery
Operating Environment
-10 ~ 50°C
RH 20-85% non condensing
Storage Environment
-20 ~ 60°C
RH 20-85% non condensing
Product Compliance
C-Tick, CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II
